CAME - REVERSIBLE GEARMOTOR 230V AC, FOR SWING GATES, LEAVES OF UP TO 7 MT
DIE-CAST ALUMINIUM STRUCTURE
MECHANICAL, INTEGRATED AND ADJUSTABLE LIMIT SWITCHES
DEVELOPED WITH CONNECT TECHNOLOGY FOR DIGITAL REMOTE MANAGEMENT VIA GATEWAY OR LOCALLY VIA CAME KEY
90° OPENING TIME IN 40 SECONDS
SOLUTION FOR RESIDENTIAL AND CONDOMINIUM APPLICATIONS
POWER SUPPLY: 230V AC

001AX71230 230V AC

Type	Max widht per leaf	Max weight per leaf
AX302304 AX3024	2 m	800 kg
	2,5 m	600 kg
	3 m	500 kg
	-	-
	-	-
	-	-
	-	-
AX402306 AX412306	2 m	800 kg
	2,5 m	600 kg
	3 m	500 kg
	4* m	300 kg
	-	-
	-	-
	-	-
AX5024	2 m	1000 kg
	2,5 m	800 kg
	3 m	700 kg
	4* m	500 kg
	5* m	400 kg
	-	-
	-	-
AX71230	2 m	1000 kg
	2,5 m	800 kg
	3 m	700 kg
	4* m	500 kg
	5* m	400 kg
	6*° m	350 kg
	7*° m	300 kg

Type	Opening	A mm	B mm	C max mm	LM mm
AXO 3	90°	130	130	70	800
AXO 3	120°	150	100	50	800
AXO 4	90°	130	130	70	800
AXO 4	120°	150	100	50	800
AXO 5	90°	200	220	150	1100
AXO 5	120°	220	220	100	1100
AXO 7	90°	200	220	150	1100
AXO 7	120°	220	220	100	1100

* It is mandatory to provide an electric lock on the leaf.
º Gates longer than 5 m must not be panelled. In reversible versions, in the event of strong winds when the gate is open, the leaf may close again.

Type	AX302304	AX402306-AX412306	AX71230	AX3024	AX5024
Degree of protection	IP44	IP44	IP44	IP44	IP44
Power supply	230V 50/60 Hz	230V 50/60 Hz	230V 50/60 Hz	230V 50/60 Hz	230V 50/60 Hz
Motor power supply	220V	230V	230V	24V	24V
Absorption	1,5	1,5	1,5	10 MAX	10 MAX
Nominal power	175W	175W	175W	120W	120W
Opening time (90°)	20	28	40	adjustable	adjustable
Intermittence work	50	30	30	intensive service	intensive service
Thrust	500-4500N	500-4500N	500-4500N	500-4500N	500-4500N
Operating temperature	-20°C min / 55°C max	-20°C min / 55°C max	-20°C min / 55°C max	-20°C min / 55°C max	-20°C min / 55°C max
Motor thermoprotection	150	150	150	-	-

Complementary accessories (not included):
- ZM3E Multifunction control panel for swing gates with two leaves, graphic programming and alerts display, plus self-diagnosing safety devices and on-board radio decoding
- LOCK81: Single cylinder electric lock
- LOCK82: Double cylinder electric lock

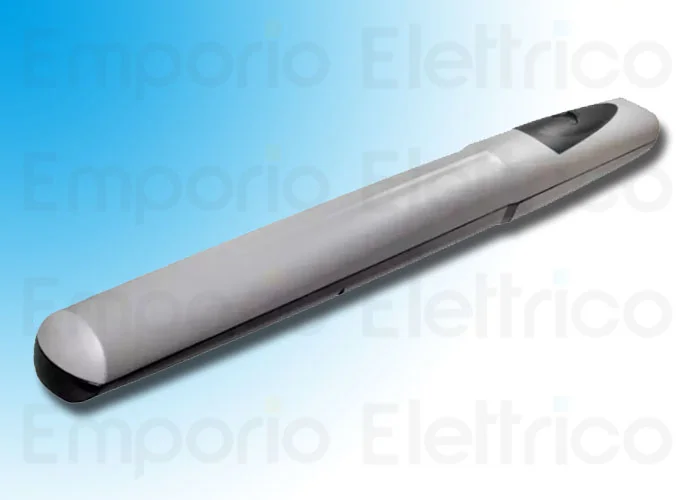

came 230v gearmotor axo 001ax71230 ax71230

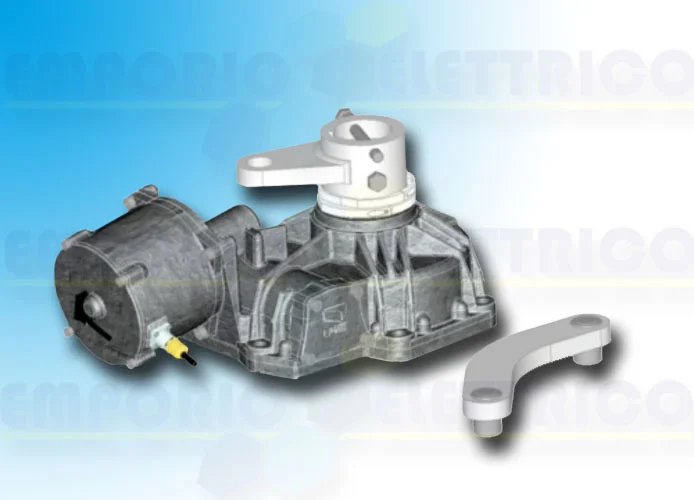

came irreversible gearmotor 230v 001frog-pm6 frog-pm6
