VORTICE - HELICAL ASPIRATOR FOR WALL MOUNTING, RECESSED SERIE, VARIO LONG LIFE 30000h

• MODEL DESIGNED FOR FLUSH WALL-MOUNTED INSTALLATION.
• REVERSIBILITY FUNCTION (INTAKE OR EXTRACTION).
• AUTOMATIC SHUTTER: PREVENTS THE ENTRY OF COLD AIR AND BAD SMELLS WHEN THE APPLIANCE IS SWITCHED OFF.
• MATERIAL: UV RESISTANT ABS PLASTIC (PREVENTS AGEING CAUSED BY EXPOSURE TO SUNLIGHT)
• NOMINAL DIAMETER 300 MM.
• MOTOR PROTECTED AGAINST THERMAL OVERLOAD, WITH SHAFT TURNING IN BALL BEARINGS, COUPLED TO SCREW TYPE THERMOPLASTIC IMPELLER WITH WING PROFILE BLADES.
• IMQ SAFETY AND IMQ PERFORMANCE CERTIFICATIONS.

VARIO 300/12" REVERSIBLE AUTOMATIC LL 12416

ABSORBED CURRENT MAX (A): 0,41
ABSORBED POWER MAX (W): 75
FREQUENCY (HZ): 50-60
INLET: AUTOMATICO
INSULATION CLASS: II°
IP: X4
MAX ABSORBED POWER AT 60HZ (W): 90
MAX AMBIENT TEMPERATURE FOR CONTINUOUS OPERATION (°C): 50
MAX AMBIENT TEMPERATURE FOR CONTINUOUS OPERATION 60HZ (°C): 40
Ø DISCHARGE HOLE (MM): 435 ÷ 440
VOLTAGE (V): 220-240
WEIGHT (KG): 7,20
DELIVERY MAX - EXTRACT (L/S): 486,1
DELIVERY MAX - EXTRACT (M3/H): 1750
DELIVERY MAX - INTAKE (L/S): 277,7
DELIVERY MAX - INTAKE (M3/H): 1000
DELIVERY MAX (M³/H): 1750
RPM: 1230
RPM - EXHAUST: 1230
RPM - SUPPLY: 1310
SOUND PRESSURE LEVEL LP [DB (A)] 3M: 53,5

Ø WALL HOLE: 435/440
SIZE A (MM): 495
SIZE B (MM): 495
SIZE C (MM): 11,5
SIZE D (MM): 210

VORTICE VARIO INBUILT series

vortice reversible and automatic helical aspirator vario ll 150/6" 12616

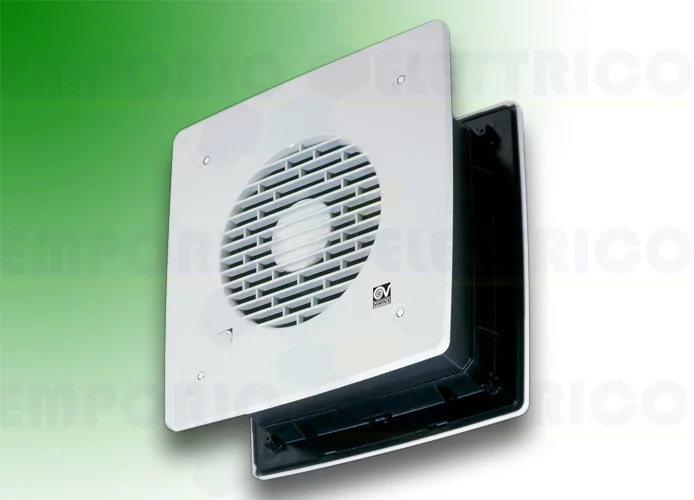

vortice vario ll 230/9" reversible automatic recessed helical aspirator 12456
