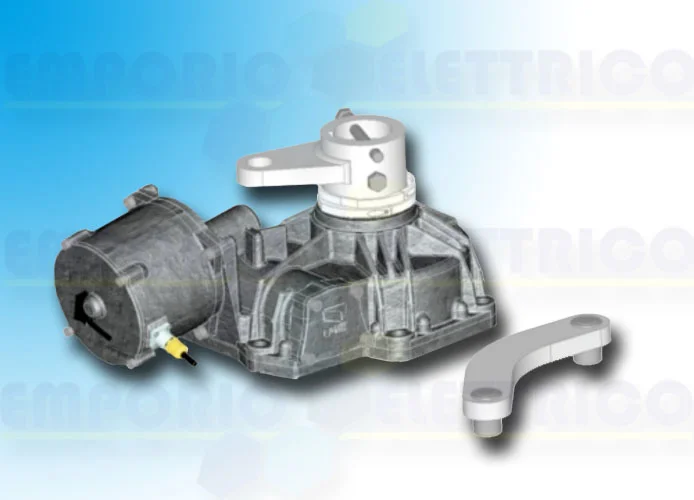

CAME - IRREVERSIBLE UNDERGROUND 230 V GEARMOTOR WITH ENCODER AND ADJUSTABLE LEAF-CLOSING FOR SWING GATES WITH UP TO 5.5 M LEAVES THAT WEIGHS UP TO 700 KG

MECHANICAL, INTEGRATED AND ADJUSTABLE LIMIT SWITCHES
LEAF OPENING UP TO 180° USING 001FL-180 ACCESSORY
AUTOMATIC RE-ENGAGEMENT OF THE RELEASE SYSTEM AFTER MANUAL OPERATION OF THE GATE

PROTECTION LEVEL: 67
90° MANOEUVRING TIME: 30 SECONDS
POWER SUPPLY: 230V AC

001FROG-PM4 230V AC

Complementary accessories (not included):
- 002ZM3EP: Multifunction control panel for swing gates with two leaves, graphic programming and alerts display, plus self-diagnosing safety devices and on-board radio decoding
- 001FROG-PC: Steel, cataphoresis treated foundation box, featuring release transmission, gate fastening brace and spring for adjusting the opening limit-switch point
- 001A4364: Release device with lever key.
- 001A4365: Release device with trilobe key
- 001A4366: Release device with customized key and EURO-DIN cylinder
- 001LOCK81: Single cylinder electric lock
- 001LOCK82: Double cylinder electric lock
