VORTICE - CENTRIFUGAL ASPIRATOR FOR AIR SHAFT, VORT PRESS LONG LIFE 30000h

- CONSTRUCTION IN PLASTIC RESIN AGING-RESISTANT DUE TO SUN EXPOSURE ("UV RESISTANT").
- NOMINAL DIAMETER 100 MM.
- HIGH EFFICIENCY ELECTRONIC COMMUTATION MOTOR (EC), COMBINED WITH A CENTRIFUGAL IMPELLER, WHICH GUARANTEES A WIDE RANGE OF ADJUSTMENTS AND A SIGNIFICANT REDUCTION IN CONSUMPTION, WITH THE SAME PERFORMANCE.
- DOUBLE MOTOR-FAN HOUSING, ANTI-VIBRATION MOUNTS AND NON-RETURN CLOSURE TO ENSURE EXTREMELY SILENT OPERATION.
- REMOVABLE AND WASHABLE METAL FILTER (EVEN IN DISHWASHER).
- CLOSURE WITH SILICONE MEMBRANE TO PREVENT AIR RE-ENTRY WHEN THE APPLIANCE IS SWITCHED OFF.
- VERTICAL DELIVERY MOUTHPIECE WITH MOUTHPIECE SUPPLIED, ADJUSTABLE IN HORIZONTAL POSITION WITH SPECIAL DIVERTER.
- COMPLETE DELIVERY MOUTH EQUIPPED WITH ANTI-RETURN VALVE.
- SATURATED FILTER SIGNALLING DEVICE.
- SPEED CONTROLLABLE BY VORTEX REGULATOR.

VORT PRESS 220 LL 11977

MAX ABSORBED CURRENT AT MAX VEL. (A): 0,55
MAX. CURRENT CONSUMPTION AT MIN VEL. (A): 0,15
NOMINAL CONDUIT DIAMETER (MM): 100
FREQUENCY (HZ): 50
PROTECTION DEGREE: IPX4
INSULATION: 2ND CLASS
EXHAUST Ø (MM): 97
WEIGHT (KG): 2.3
MAX ABSORBED POWER AT MAX VEL. (W): 60
MAX. ABSORBED POWER AT MIN VEL. (W): 11
TEMP. ENVIRONMENT MAX. CONTINUOUS OPERATION (°C): 40
VOLTAGE (V): 220-240
MAX CAPACITY AT MAX VEL. (L/S): 72
MAX CAPACITY AT MAX VEL. (M³/H): 260
MAX FLOW RATE AT MIN VEL. (L/S): 35
MAX FLOW RATE AT MIN VEL. (M³/H): 125
MAX PRESSURE TO MAX VEL. (MMH2O): 35
MAX PRESSURE TO MAX VEL. (PA): 343
MAX PRESSURE AT MIN VEL. (MMH2O): 11
MAX PRESSURE AT MIN VEL. (PA): 108
SOUND PRESSURE LEVEL LP IN FREE FIELD [DB(A)] 3 M MAX. VEL.: 55
SOUND PRESSURE LEVEL LP IN FREE FIELD [DB(A)] 3 M MIN VEL.: 43
RPM MAX: 2380
RPM MIN: 1200

SIZE A (MM): 275

SIZE B (MM): 140

SIZE C (MM): 28

SIZE D (MM): Ø 97

SIZE E (MM): 73

complementary accessories:

- electronic speed controller vortice 12966

- built-in speed controller vortice 12971

VORT PRESS LL series

vortice vort press 110 ll centrifugal aspirator 11967

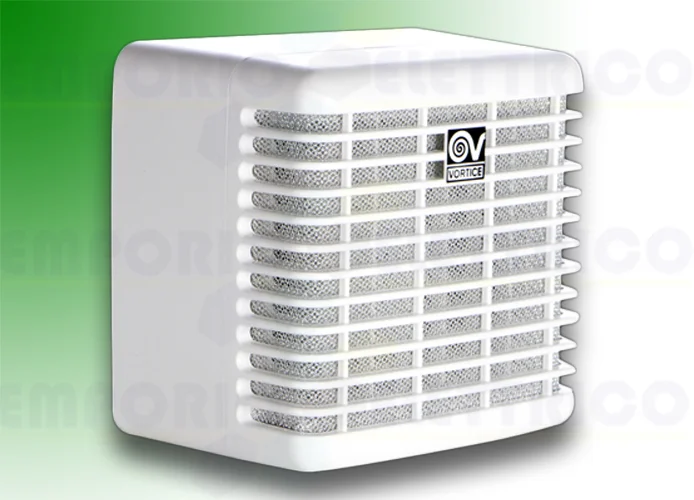

vortice vort press 110 ll timer centrifugal aspirator 11968

vortice vort press 220 ll centrifugal aspirator 11977

vortice vort press 220 ll timer centrifugal aspirator 11978
