vortice vort quadro centrifugal aspirator super 11952

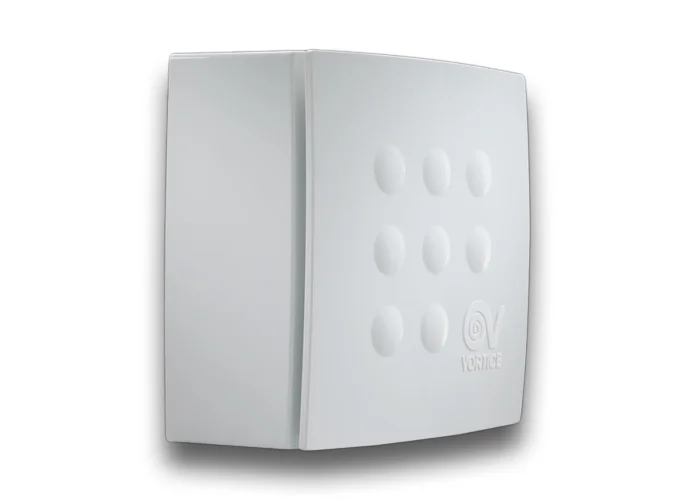

VORTICE - CENTRIFUGAL ASPIRATOR FOR AIR SHAFT, VORT QUADRO SERIES

• MATERIAL: WHITE ABS PLASTIC
• 3 SPEED FAN THROUGH OPTIONAL TRIO-S CONTROLLER (CODE 12871), CONSISTING OF:
• CAPACITOR START INDUCTION MOTOR EQUIPPED WITH THERMAL OVERLOAD CUTOUT AND SELF-LUBRICATING BUSHINGS,
• FORWARD CENTRIFUGAL IMPELLER.
• NOMINAL DIAMETER 100 MM.

VORT QUADRO Serie SUPER  11952

ABSORBED POWER 1ST SPEED (W): 50
FREQUENCY (HZ): 50
INSULATION CLASS: II°
IP: X4
MAX AMBIENT TEMPERATURE FOR CONTINUOUS OPERATION (°C): 50
MAX. ABSORBED CURRENT AT MAX. SPEED (A): 0,5
MAX. ABSORBED CURRENT AT MIN. SPEED (A): 0,36
MAX. ABSORBED POWER AT MAX SPEED (W): 105
NOMINAL DIAMETER (MM): 100
Ø DISCHARGE HOLE (MM): 97
VOLTAGE (V): 220-240
WEIGHT (KG): 3,77
DELIVERY 1ST SPEED (L/S): 38
DELIVERY 1ST SPEED (M³/H): 140
MAX DELIVERY AT MAX SPEED (L/S): 77
MAX DELIVERY AT MAX SPEED (M³/H): 280
PRESSURE - 1ST SPEED (MMH20): 23
PRESSURE - 1ST SPEED (PA): 226
PRESSURE MAX - MAX SPEED (MMH20): 50
PRESSURE MAX - MAX SPEED (PA): 490
RPM MAX: 2200
RPM MIN: 1400
SOUND PRESSURE IN FREE AIR CONDITIONS [DB(A)] 3M: 41,9
SOUND PRESSURE LEVEL LP [DB (A)] 3M - MAX SPEED: 48,6
SOUND PRESSURE LEVEL LP [DB (A)] 3M - MIN SPEED: 41,9

SIZE A (MM): 290
SIZE B (MM): 290
SIZE C (MM): 144
SIZE D (MM): Ø 97
SIZE E (MM): 31
SIZE F (MM): 58
SIZE G (MM): 64
SIZE H (MM): 236
SIZE I (MM): 239
SIZE L (MM): 118
SIZE M (MM): 26
SIZE N (MM): 125
SIZE O (MM): 6,5
