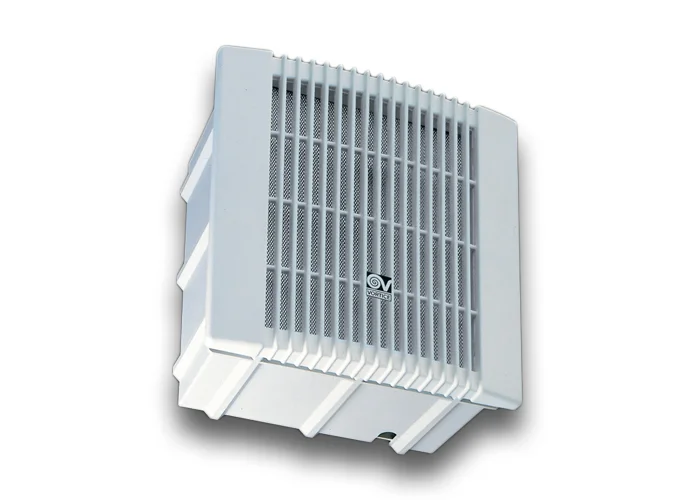

VORTICE - CENTRIFUGAL ASPIRATOR FOR AIR SHAFT, RECESSED SERIE, VORT PRESS LONG LIFE 30000h
- CONSTRUCTION IN PLASTIC RESIN RESISTANT TO AGING DUE TO SUN EXPOSURE ("UV RESISTANT").
- NOMINAL DIAMETER 100 MM
- HIGH EFFICIENCY ELECTRONIC COMMUTATION MOTOR (EC), COMBINED WITH A CENTRIFUGAL IMPELLER, WHICH GUARANTEES A WIDE RANGE OF ADJUSTMENTS AND A SIGNIFICANT REDUCTION IN CONSUMPTION, WITH THE SAME PERFORMANCE.
- DOUBLE MOTOR-FAN HOUSING, ANTI-VIBRATION MOUNTS AND NON-RETURN CLOSURE TO ENSURE EXTREMELY QUIET OPERATION.
- EQUIPPED WITH FRONT GRILLE SUPPORT SPRINGS, SUITABLE FOR ANY TYPE OF FALSE CEILING (MAX. 65 MM).
- REMOVABLE AND WASHABLE METAL FILTER.
- COMPLETE DELIVERY PORT EQUIPPED WITH ANTI-RETURN VALVE.
- SATURATED FILTER SIGNALLING DEVICE.
- SPEED CONTROLLABLE BY VORTEX REGULATOR.
VORT PRESS 240 LL 11973
MAX. CURRENT CONSUMPTION AT MIN VEL. (A): 0,1
NOMINAL CONDUIT DIAMETER (MM): 100
FREQUENCY (HZ): 50
PROTECTION DEGREE: IPX4
INSULATION: 2ND CLASS
EXHAUST Ø (MM): 97
WEIGHT (KG): 3.3
MAX ABSORBED POWER AT MAX VEL. (W): 40
MAX. ABSORBED POWER AT MIN VEL. (W): 9
TEMP. ENVIRONMENT MAX CONTINUOUS OPERATION (°C): 40
VOLTAGE (V): 220-240
MAX CAPACITY AT MAX VEL. (L/S): 58
MAX CAPACITY AT MAX VEL. (M³/H): 210
MAX FLOW RATE AT MIN VEL. (L/S): 28
MAX FLOW RATE AT MIN VEL. (M³/H): 100
MAX. FLOW RATE OUTPUT LAT. MAX VEL. (L/S): 75
MAX. FLOW RATE OUTPUT LAT. MAX VEL. (M³/H): 270
MAX. FLOW RATE OUTPUT LAT. MIN SPEED (L/S): 39
MAX. FLOW RATE OUTPUT LAT. MIN SPEED (M³/H): 140
MAX PRESSURE TO MAX VEL. (MMH2O): 31
MAX PRESSURE TO MAX VEL. (PA): 304
MAX PRESSURE AT MIN VEL. (MMH2O): 8.5
MAX PRESSURE AT MIN VEL. (PA): 84
MAX. PRESSURE OUTPUT LAT. AT THE MAX VEL. (MMH2O): 34.4
MAX. PRESSURE OUTPUT LAT. AT THE MAX VEL. (PA): 338
MAX. PRESSURE OUTPUT LAT. MIN SPEED (MMH2O): 9.1
MAX. PRESSURE OUTPUT LAT. MIN SPEED (PA): 89
SOUND PRESSURE LP [DB (A)] 3M - MAX VEL: 56
SOUND PRESSURE LP [DB (A)] 3M - MIN VEL: 44
RPM MAX: 2110
RPM MIN: 1150
RPM OUTPUT LAT. - MAX VEL: 1810
RPM OUTPUT LAT. - MIN VEL: 1015
SIZE A (MM): 28
SIZE B (MM): 65
SIZE C (MM): 284
SIZE D (MM): 300
SIZE E (MM): 133
SIZE F (MM): 28.5
SIZE G (MM): Ø 97
SIZE H (MM): 62
SIZE I (MM): 71.5
complementary accessories:
- 12966 vortex electronic speed controller
- 12971 vortex recessed speed regulator
