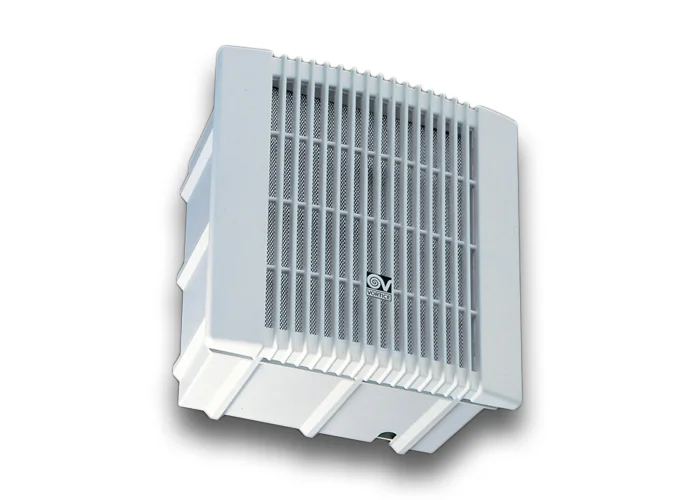

vortice vort press 140 ll recessed centrifugal aspirator 11971

VORTICE - CENTRIFUGAL ASPIRATOR FOR AIR SHAFT, RECESSED SERIE, VORT PRESS LONG LIFE 30000h

• MATERIAL: UV RESISTANT PLASTIC (PREVENTS AGEING CAUSED BY EXPOSURE TO SUNLIGHT).
• NOMINAL DIAMETER 100 MM
• 2 SPEED MOTOR WITH THERMAL OVERLOAD PROTECTION AND SHAFT TURNING IN BALL BEARINGS.
• MINIMUM AIR FLOW, REAR OUTLET: 55 M3/H
MAXIMUM AIR FLOW, REAR OUTLET: 118 M3/H
• MINIMUM AIR FLOW, SIDE OUTLET: 67 M3/H
MAXIMUM AIR FLOW, SIDE OUTLET: 140 M3/H
• DOUBLE MOTOR-FAN ENCLOSURE, ANTIVIBRATION MOUNTS AND NON-RETURN DAMPER COMBINING TO ENSURE EXTREMELY QUIET OPERATION.
• SUPPLIED WITH FRONT GRILLE MOUNTING SPRINGS, SUITABLE FOR ANY KIND OF FALSE CEILING (65 MM MAX).
• REMOVABLE AND WASHABLE METAL MESH FILTER.
• OUTLET PORT EQUIPPED WITH NON-RETURN DAMPER.
• IMQ SAFETY AND IMQ PERFORMANCE CERTIFICATIONS
• VORTICE SPEED CONTROLLER.

VORT PRESS 140 LL 11971

ABSORBED POWER 1ST SPEED (W): 16
FREQUENCY (HZ): 50
INSULATION CLASS: II°
IP: X4
MAX AMBIENT TEMPERATURE FOR CONTINUOUS OPERATION (°C): 40
MAX. ABSORBED CURRENT AT MAX. SPEED (A): 0,1
MAX. ABSORBED CURRENT AT MIN. SPEED (A): 0,05
MAX. ABSORBED POWER AT MAX SPEED (W): 27
NOMINAL DIAMETER (MM): 100
Ø DISCHARGE HOLE (MM): 97
VOLTAGE (V): 220-240
WEIGHT (KG): 2,9
DELIVERY 1ST SPEED (L/S): 15,3
DELIVERY 1ST SPEED (M³/H): 55
MAX DELIVERY AT MAX SPEED (L/S): 32,8
MAX DELIVERY AT MAX SPEED (M³/H): 118
MAX DELIVERY OF SIDE OUTLET AT MAX SPEED (L/S): 38,9
MAX DELIVERY OF SIDE OUTLET AT MAX SPEED (M³/H): 140
MAX DELIVERY OF SIDE OUTLET AT MIN SPEED (L/S): 18,6
MAX DELIVERY OF SIDE OUTLET AT MIN SPEED (M³/H): 67
MAX PRESSURE AT SIDE OUTLET - MAX SPEED (MMH2O): 22
MAX PRESSURE AT SIDE OUTLET - MIN SPEED (MMH2O): 8
MAX PRESSURE AT SIDE OUTLET - MIN SPEED (PA): 78
MAX PRESSURE AT SIDE OUTLET (PA): 216
PRESSURE - 1ST SPEED (MMH20): 8
PRESSURE - 1ST SPEED (PA): 78
PRESSURE MAX - MAX SPEED (MMH20): 22
PRESSURE MAX - MAX SPEED (PA): 216
RPM MAX: 1130
RPM MIN: 594
RPM SIDE AIR OUTLET - MAX SPEED: 829
RPM SIDE AIR OUTLET - MIN SPEED: 450
SOUND PRESSURE LEVEL LP [DB (A)] 3M - MAX SPEED: 38
SOUND PRESSURE LEVEL LP [DB (A)] 3M - MIN SPEED: 30

SIZE A (MM): 28
SIZE B (MM): 65
SIZE C (MM): 284
SIZE D (MM): 300
SIZE E (MM): 133
SIZE F (MM): 28,5
SIZE G (MM): Ø 97
SIZE H (MM): 62
SIZE I (MM): 71,5
