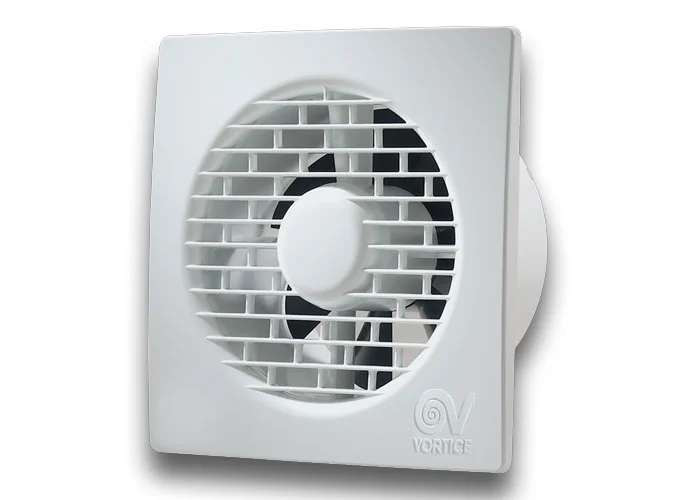

vortice helical aspirator punto filo series mf 150/6" ll 11133
Brand: VORTICE
SKU: 11133
vortice helical aspirator punto filo series mf 150/6" ll 11133
VORTICE - WALL HELICAL ASPIRATOR, PUNTO FILO SERIES.
- MATERIAL: UV RESISTANT PLASTIC (PREVENTS AGEING CAUSED BY EXPOSURE TO SUNLIGHT).
- NOMINAL DIAMETER 150 MM
- MOTOR PROTECTED AGAINST THERMAL OVERLOAD, WITH SHAFT TURNING IN SELF-LUBRICATING BUSHINGS, COUPLED TO SCREW TYPE THERMOPLASTIC IMPELLER WITH WING PROFILE BLADES.
- MAXIMUM AIR FLOW 335 M3/H
- NON-RETURN VALVE APPLIED TO THE DISCHARGE HOLE
- IMQ SAFETY AND IMQ PERFORMANCE CERTIFICATIONS
- VORTICE SPEED CONTROLLERS.
HELICAL ASPIRATOR
PUNTO FILO SERIE
11133
TECHNICAL FEATURES:
- ABSORBED CURRENT MAX (A)0,15
- NOMINAL DIAMETER (MM)150
- FREQUENCY (HZ)50
- DEGREE OF PROTECTION IPX4
- INSULATION CLASS : II°
- WEIGHT (KG)0,98
- MAX. ABSORBED POWER (W)28
- MAX AMBIENT TEMPERATURE FOR CONTINUOUS OPERATION (°C)50
- VOLTAGE (V) 220-240
- MAX AIR FLOW (L/S)93
- MAX AIR FLOW (M³/H)335
- PRESSURE MAX (MMH2O)6
- PRESSURE MAX (PA)59
- SOUND PRESSURE LP [DB (A)] 3M40,1
- RPM 2100.
