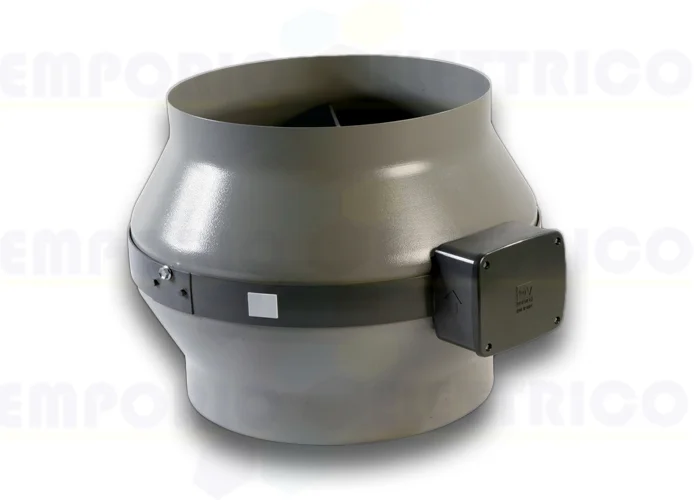

vortice centrifugal aspirator ca md and ca 200 md and 16165 (ex 16155)

VORTICE - 16165 STEEL AXIAL CENTRIFUGAL ASPIRATOR

• PICKLED AND PHOSPHATED STEEL HOUSING WITH POLYESTER POWDER-COATED FINISH, RESISTANT TO THE AGGRESSIVE ACTION OF ATMOSPHERIC AGENTS.
• NOMINAL DIAMETER 200 MM.
• 3 SPEED FAN THROUGH TRIO-CA OPTIONAL CONTROL (COD. 12869), CONSISTING OF:
• EXTERNAL ROTOR AC MOTOR WITH THERMAL OVERLOAD CUTOUT AND SHAFT TURNING IN BALL BEARINGS,
• BACKWARD CURVED CENTRIFUGAL IMPELLER.
• OPERATION CONTROLLABLE BY REMOTE SENSORS MONITORING: TEMPERATURE, RELATIVE HUMIDITY, SMOKE AND PRESENCE.
• ZINC-COATED STEEL BRACKETS FOR WALL MOUNTING.

CA 200 MD E    16165 (EX 16155)

ABSORBED POWER 1ST SPEED (W): 45
FREQUENCY (HZ): 50-60
INSULATION CLASS: II°
IP: 44
MAX ABSORBED POWER AT 60HZ (W): 115
MAX AMBIENT TEMPERATURE FOR CONTINUOUS OPERATION (°C): 50
MAX. ABSORBED CURRENT AT MAX. SPEED (A): 0,40
MAX. ABSORBED CURRENT AT MIN. SPEED (A): 0,37
MAX. ABSORBED POWER AT MAX SPEED (W): 90
NOMINAL DIAMETER (MM): 200
VOLTAGE (V): 220-240
WEIGHT (KG): 6
DELIVERY 1ST SPEED (L/S): 139
DELIVERY 1ST SPEED (M³/H): 500
MAX DELIVERY AT MAX SPEED (L/S): 231
MAX DELIVERY AT MAX SPEED (M³/H): 830
PRESSURE - 1ST SPEED (MMH20): 42
PRESSURE - 1ST SPEED (PA): 412
PRESSURE MAX - MAX SPEED (MMH20): 46
PRESSURE MAX - MAX SPEED (PA): 451
RPM MAX: 2610
RPM MIN: 1610
SOUND PRESSURE LEVEL LP [DB (A)] 3M - MAX SPEED: 48,1
SOUND PRESSURE LEVEL LP [DB (A)] 3M - MIN SPEED: 36,2

SIZE A (MM): 347
SIZE B (MM): 275
SIZE C (MM): 424
SIZE D (MM): 197
SIZE E (MM): 20
SIZE F (MM): 17
