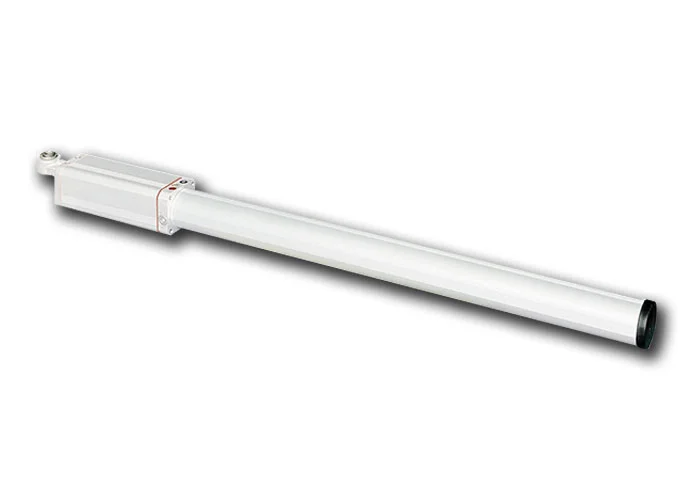

vds hydraulic actuator phv 240 linear 230v 100021
Brand: VDS
SKU: 100021
£1,054.00 £505.92VAT INCLUDED |
|---|
vds hydraulic actuator phv 240 linear 230v 100021
VDS - PHV 240 IRREVERSIBLE/REVERSIBLE HYDRAULIC GEARMOTOR FOR SWING GATES, MAX. LEAF 4 M
STROKE OF 242 mm.
FEATURES
STROKE OF 242 mm.
HYDRAULIC GEARMOTOR PHV 240 100021
230V AC
FEATURES
- Reversible/Irreversible
- Door Max 4mt (PHV 240) – 7mt (PHV 360)
- Actuator in strong aluminium and die-cast structure
- Useful stroke mm 242 (phv 240) – mm 362 (phv 360)
- 20 mm ground and chromed steel stem
- Extremely quiet operation
- Electric motor in oil bath
- Valve device for selection between reversibility or locking
- Hydraulic adjustment of pushing force
- Hydraulic adjustment of closing slowdown
- Aluminium stem cover supplied
- Manual release with key
- Opening 90°
- Fast mounting with multi-position brackets
- 230Vac power supply.
