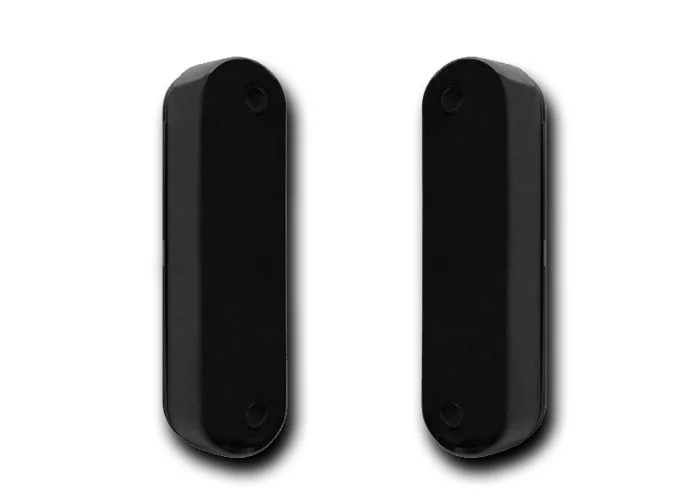

nologo photocell for gates/doors with up to 90° positioning zoom-line90
Brand: NOLOGO
SKU: ZOOM-LINE90
£45.00 £26.77VAT INCLUDED |
|---|
nologo photocell for gates/doors with up to 90° positioning zoom-line90
NOLOGO - WALL-MOUNTED PHOTOCELL WITH 90° RANGE OF ACTION FOR DOORS AND GATES.
- BUILT WITH THE PROTECTION CIRCUIT AND SCREEN PROTECTION
- SET CONSISTING OF TRANSMITTER AND RECEIVER
- PREPARED FOR SYNCHRONISM
- POWER SUPPLY 12/24VAC/DC.IP66
- GASKET SCREWS AND SCREW COVERS
- EASILY INSTALLED AND REMOVABLE BOARD
- RANGE 15 M IN ALL CONDITIONS.
NOLOGO
ZOOM-LINE90
- BUILT WITH THE PROTECTION CIRCUIT AND SCREEN PROTECTION
- SET CONSISTING OF TRANSMITTER AND RECEIVER
- PREPARED FOR SYNCHRONISM
- POWER SUPPLY 12/24VAC/DC.IP66
- GASKET SCREWS AND SCREW COVERS
- EASILY INSTALLED AND REMOVABLE BOARD
- RANGE 15 M IN ALL CONDITIONS.
NOLOGO
ZOOM-LINE90
TECHNICAL FEATURES:
- POWER SUPPLY: 12-36VAC/DC
- CONSUMPTION (MA): TX25MA, RX 35MA
- RELAY CONTACT: NC MAX 500MA 48V
- MAXIMUM RANGE (MT): 10/20
- IP CLASS: 66
- SIZE (MM): 29X115X28.
- POWER SUPPLY: 12-36VAC/DC
- CONSUMPTION (MA): TX25MA, RX 35MA
- RELAY CONTACT: NC MAX 500MA 48V
- MAXIMUM RANGE (MT): 10/20
- IP CLASS: 66
- SIZE (MM): 29X115X28.
