nologo 230 Vac digital control unit with transformer start-s11ct
Brand: NOLOGO
SKU: START-S11CT
£200.00 £116.97VAT INCLUDED |
|---|

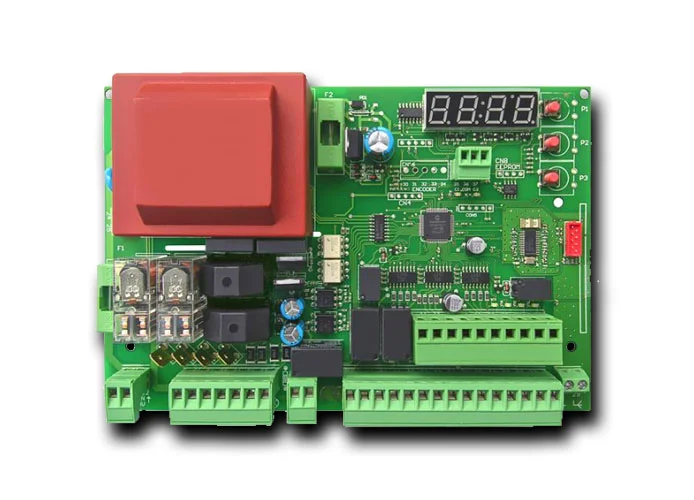

nologo 230 Vac digital control unit with transformer start-s11ct
NOLOGO - SINGLE-PHASE CONTROL UNIT FOR 1/2 230VAC MOTORS SUITABLE FOR CONTROLLING THE MOVEMENT OF GATES, OVERHEAD DOORS, ROLLING SHUTTERS AND AUTOMATIC DOORS.
- THE INTEGRATED CLOCK WITH WEEKLY OPENING AND CLOSING TIME SLOTS
- ADJUSTABLE MOTOR SPEED, SLOW DOWN SPEED, LOCK AND FORCE
- OPERATING LOGIC: QUICK REVERSE, CONDOMINIUM, STEP-BY-STEP, STEP-BY-STEP-PAUSE, INDUSTRIAL, WATER HAMMER, MAN-PRESENT, DETECT PASSAGE, PREFLASH, FLASHING PAUSE, COURTESY LIGHT OR FLASHING LIGHT, SOFT START, CUEING
- BOARD ONLY, BOX NOT INCLUDED
- IBR-N RECEIVER NOT INCLUDED
- COMPATIBLE WITH CAME TERMINALS AND FITTED WITH TRANSFORMER.
CONTROL UNIT 230 VAC
START-S11CT
- THE INTEGRATED CLOCK WITH WEEKLY OPENING AND CLOSING TIME SLOTS
- ADJUSTABLE MOTOR SPEED, SLOW DOWN SPEED, LOCK AND FORCE
- OPERATING LOGIC: QUICK REVERSE, CONDOMINIUM, STEP-BY-STEP, STEP-BY-STEP-PAUSE, INDUSTRIAL, WATER HAMMER, MAN-PRESENT, DETECT PASSAGE, PREFLASH, FLASHING PAUSE, COURTESY LIGHT OR FLASHING LIGHT, SOFT START, CUEING
- BOARD ONLY, BOX NOT INCLUDED
- IBR-N RECEIVER NOT INCLUDED
- COMPATIBLE WITH CAME TERMINALS AND FITTED WITH TRANSFORMER.
CONTROL UNIT 230 VAC
START-S11CT
TECHNICAL FEATURES:
- Power supply: 230Vac
- Maximum motor power: 750W 4A
- Dry contact: 5A
- Consumption: 24Vac 300mA, 12Vac 600mA, 24Vdc 100mA
- Weight (gr): 814
- Size (mm): 135x145x50.
- Power supply: 230Vac
- Maximum motor power: 750W 4A
- Dry contact: 5A
- Consumption: 24Vac 300mA, 12Vac 600mA, 24Vdc 100mA
- Weight (gr): 814
- Size (mm): 135x145x50.
