genius mistral automation kit 433 MHz 230v 51700781
£823.00 £592.56VAT INCLUDED |
|---|
genius mistral automation kit 433 MHz 230v 51700781
COMPLETE WITH ACCESSORIES
- IRREVERSIBLE GEARMOTOR, EQUIPPED WITH LEVER RELEASE AND PERSONALISED KEY ACCESS
- SUITABLE FOR CONDOMINIUM USE
- INTERNAL KINEMATIC MOTION THAT INCLUDES BRONZE CROWN GEAR AND STEEL WORM GEAR
- SLOWDOWN ON OPENING AND CLOSING
- HORIZONTAL CABLE OUTLET (INSTALLATION CLOSE TO THE FLOOR)
- FREQUENCY 433 MHz - RC
51700781 230V

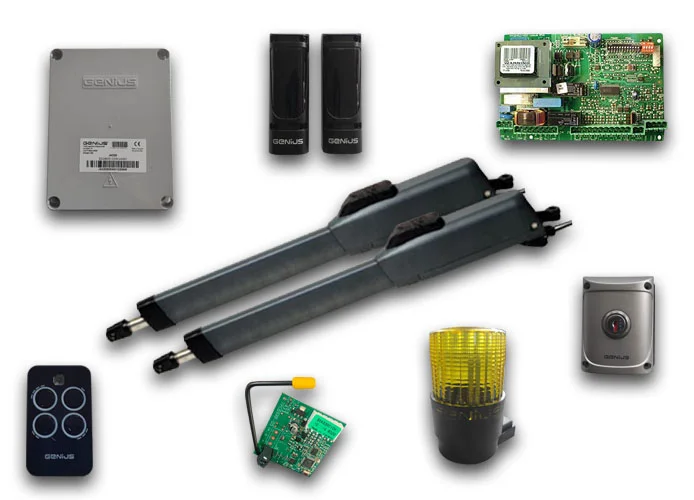

IT INCLUDES:
- 2 6170116: Irreversible electromechanical gearmotor for swing gates, condominium application, up to 3m
- 1 JA592: Electronic board for 230v ac swing gates
- 1 JA320: Electronic control board enclosure, 230v ac
- 1 6100334: 4-channel transmitter echo tx 4 rc 433 mhz
- 1 6100147: Vega bus photocells
- 1 6100354: 433 MHz single-channel receiver
- 1 6100315: Guard 230v led flashing lamp
- 1 JA31101: Quick 1 key-operated selector
- 1 Warning sign
MOTOR TECHNICAL DETAILS:
- POWER SUPPLY (V) 230
- ELECTRICAL MOTOR (V) 230
- POWER (W) 300
- CURRENT (A) 1.3
- THERMAL PROTECTION (°C) 140
- CAPACITOR (ΜF) 8
- THRUST (DAN) 300
- STROKE (MM) 300
- MAX. SPEED (CM/SEC.) 1.6
- OPERATING FREQUENCY AT 20°C S3 - 30%
- OPERATING TEMPERATURE (°C) 20 +55
- DEGREE OF PROTECTION: IP54
- MOTOR WEIGHT (KG) 7.5
