genius kit automation compas 24v 51700811
GENIUS - COMPLETE KIT THAT COMES WITH ALL THE ACCESSORIES, DESIGNED FOR RESIDENTIAL USE, SUITABLE FOR MOTORISING A TWO-LEAF GATE WITH A MAX. LEAF WIDTH OF 2.50 M, AND GATE LEAF WEIGHT MAX. 310 KG
- GEARMOTOR INCLUDES THE ENV FUNCTION
- ROTARY RELEASE AND ACCESS WITH CUSTOMISED KEY
- INTERNAL KINEMATICS CONSISTING OF BRONZE CROWN GEAR AND STEEL WORM GEAR
- INTEGRATED ADJUSTABLE MECHANICAL LIMIT SWITCHES

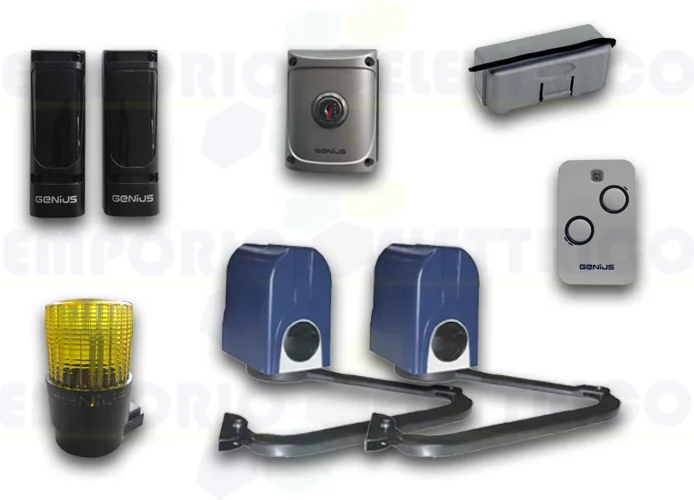

IT INCLUDES:
- 1 6170136: Compas 24c electromechanical operator (with brain 06 electronic equipment)
- 1 6170135: Compas 24 electromechanical operator
- 1 6100347: Radio frequency module rqfz plug-in 3pin (see frequency)
- 1 6100332: Transmitter (see frequency)
- 1 6100148: Pair of outdoor photocells vega - bus
- 1 6100316: Flashing light guard
- 1 JA31101-10: External key selector quick 1
- 1 Gate sign
COMPAS 24 TECHNICAL DETAILS:
- POWER SUPPLY (V) 230
- ELECTRICAL MOTOR (V) 24
- NOMINAL POWER (W) 120
- MAXIMUM TORQUE (NM) 250
- ANGULAR SPEED (°/SEC) 13
- MAX. LEAF WEIGHT (KG)¹ 310
- MAX. CONSECUTIVE CYCLES 30
- OPERATING FREQUENCY AT 20°C CONTINUOUS
- OPERATING TEMPERATURE (°C) 20 +55
- DEGREE OF PROTECTION IP44
COMPAS 24 C TECHNICAL DETAILS:
- POWER SUPPLY (V) 230
- ELECTRICAL MOTOR (V) 24
- NOMINAL POWER (W) 140
- MAXIMUM TORQUE (NM) 250
- ANGULAR SPEED (°/SEC) 13
- MAX. LEAF WEIGHT (KG)¹ 310
- MAX. CONSECUTIVE CYCLES 30
- OPERATING FREQUENCY AT 20°C CONTINUOUS
- OPERATING TEMPERATURE (°C) 20 +55
- DEGREE OF PROTECTION IP44
- GEARMOTOR INCLUDES THE ENV FUNCTION
- ROTARY RELEASE AND ACCESS WITH CUSTOMISED KEY
- INTERNAL KINEMATICS CONSISTING OF BRONZE CROWN GEAR AND STEEL WORM GEAR
- INTEGRATED ADJUSTABLE MECHANICAL LIMIT SWITCHES
