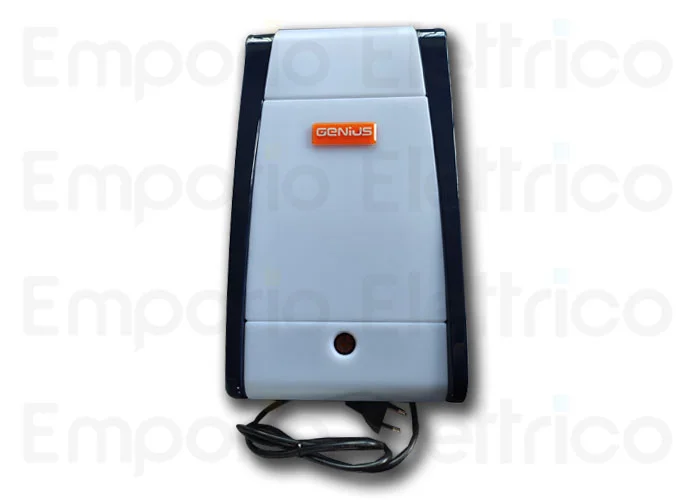

genius irreversible gearmotor zodiac 100 24v 6120042
Brand: GENIUS
SKU: 6120042
£505.00 £237.35VAT INCLUDED |
|---|
genius irreversible gearmotor zodiac 100 24v 6120042
GENIUS - ZODIAC IRREVERSIBLE GEARMOTOR WITH INTEGRATED GEO 09 CONTROL BOARD FOR SECTIONAL DOORS UP TO 5 x 3,10 m, UP-AND-OVER DOORS UP TO 3 x 3,10 m AND 1000 N THRUST
24V VERSION WITH 1000N THRUST
BASE MADE OF STRONG PLASTIC MATERIAL THAT REDUCES ITS WEIGHT AND MAKES IT EASIER TO HANDLE
SUPPLIED WITH POWER CORD AND PLUG
PREPARED FOR THE USE OF ENERGY-SAVING LAMPS
INTEGRATED COURTESY LAMP
PROGRAMMING ACCESS PANEL WITHOUT THE NEED TO OPEN THE OPERATOR BONNET
INTEGRATED OPENING CONTROL BUTTON
CHAIN TRACK NOT INCLUDED
24V VERSION WITH 1000N THRUST
BASE MADE OF STRONG PLASTIC MATERIAL THAT REDUCES ITS WEIGHT AND MAKES IT EASIER TO HANDLE
SUPPLIED WITH POWER CORD AND PLUG
PREPARED FOR THE USE OF ENERGY-SAVING LAMPS
INTEGRATED COURTESY LAMP
PROGRAMMING ACCESS PANEL WITHOUT THE NEED TO OPEN THE OPERATOR BONNET
INTEGRATED OPENING CONTROL BUTTON
CHAIN TRACK NOT INCLUDED
6120042
ZODIAC 100
24V DC
ZODIAC 100
24V DC
TECHNICAL DETAILS:
- POWER SUPPLY (V): 230
- ELETTRIC MOTOR (V): 24
- POWER (W): 350
- THRUST (DAN): 600/1000
- MAX. CONSECUTIVES CYCLES: 30
- MAX. CARRIAGE (MM.): 1900 - 2500 - 3100
- NO-LOAD CARRIAGE SPEED (M/MIN.): 6.6
- USAGE FREQUENCY AT 20°C 80 CYCLES PER DAY
- OPERATING TEMPERATURES (°C) -20 +55
- OPERATOR WEIGHT (KG) 6.6
- DEGREE OF PROTECTION IP20
- POWER SUPPLY (V): 230
- ELETTRIC MOTOR (V): 24
- POWER (W): 350
- THRUST (DAN): 600/1000
- MAX. CONSECUTIVES CYCLES: 30
- MAX. CARRIAGE (MM.): 1900 - 2500 - 3100
- NO-LOAD CARRIAGE SPEED (M/MIN.): 6.6
- USAGE FREQUENCY AT 20°C 80 CYCLES PER DAY
- OPERATING TEMPERATURES (°C) -20 +55
- OPERATOR WEIGHT (KG) 6.6
- DEGREE OF PROTECTION IP20
