genius irreversible gearmotor trigon k 230v 6170152
Brand: GENIUS
SKU: 6170152
£602.00 £282.94VAT INCLUDED |
|---|

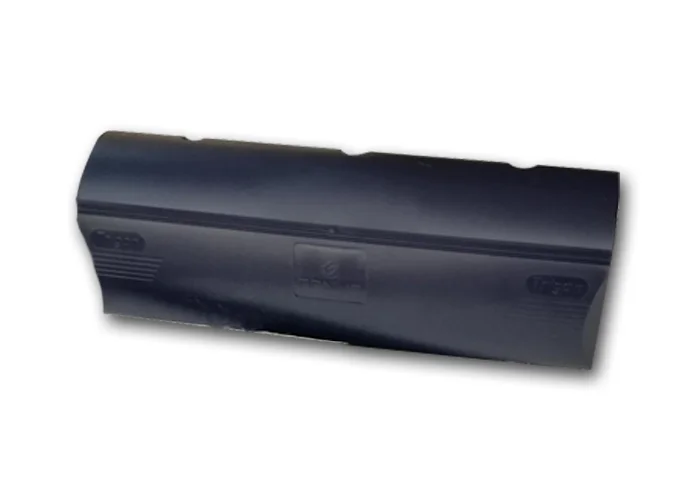

genius irreversible gearmotor trigon k 230v 6170152
GENIUS - IRREVERSIBLE TRIGON K GEARMOTOR FOR FOLDING GATES
(UP TO 3 x 5 m PER LEAF)
- G-WAY SYSTEM WITH BRAIN19 BOARD
- RELEASE WITH CUSTOMISED KEY
- INTERNAL KINEMATIC MECHANISM CONSISTING OF BRONZE CROWN GEAR AND STEEL WORM GEAR
(UP TO 3 x 5 m PER LEAF)
- G-WAY SYSTEM WITH BRAIN19 BOARD
- RELEASE WITH CUSTOMISED KEY
- INTERNAL KINEMATIC MECHANISM CONSISTING OF BRONZE CROWN GEAR AND STEEL WORM GEAR
6170152
TRIGON K
230V
TRIGON K
230V
TECHNICAL DETAILS:
POWER SUPPLY (V) 230
ELECTRIC MOTOR (V) 230
NOMINAL POWER (W) 280
CURRENT (A) 1.2
THERMAL PROTECTION (°C) 140
CAPACITATOR (ΜF) 8
ANGULAR SPEED (°/SEC) 8
OPERATING FREQUENCY AT 20°C S3 - 30%
NOMINAL SHAFT TORQUE (NM) 250
OPERATING TEMPERATURE (°C) -20 +55
WEIGHT (KG) 11.5
DEGREE OF PROTECTION IP44
POWER SUPPLY (V) 230
ELECTRIC MOTOR (V) 230
NOMINAL POWER (W) 280
CURRENT (A) 1.2
THERMAL PROTECTION (°C) 140
CAPACITATOR (ΜF) 8
ANGULAR SPEED (°/SEC) 8
OPERATING FREQUENCY AT 20°C S3 - 30%
NOMINAL SHAFT TORQUE (NM) 250
OPERATING TEMPERATURE (°C) -20 +55
WEIGHT (KG) 11.5
DEGREE OF PROTECTION IP44
