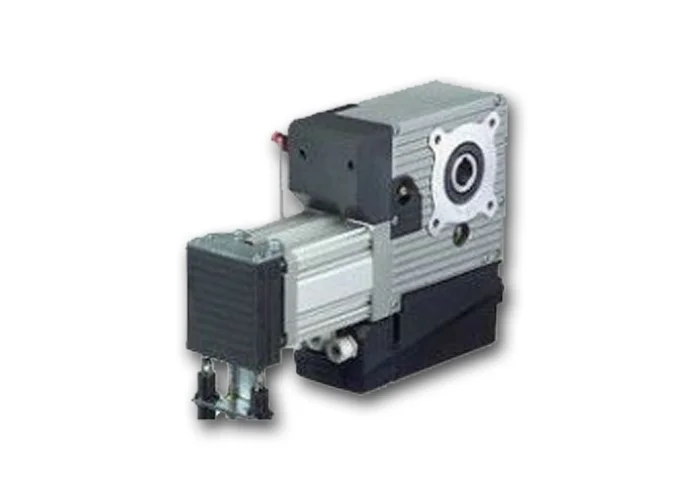

genius irreversible gearmotor mercury v 3 ph 400v 6120024
Brand: GENIUS
SKU: 6120024
£1,203.00 £565.41VAT INCLUDED |
|---|
genius irreversible gearmotor mercury v 3 ph 400v 6120024
GENIUS - IRREVERSIBLE GEARMOTOR MERCURY WITHOUT CENTRAL WITH WINCH FOR INDUSTRIAL GATES
SUITABLE FOR INDUSTRIAL USE
EXTREMELY COMPACT AND QUIET THREE-PHASE GEAR MOTOR
IRREVERSIBLE WORM GEAR/GEARBOX ENTIRELY IN OIL BATH TO ENSURE MECHANICAL LOCKING OF THE DOOR
CAN BE INSTALLED DIRECTLY ON THE WINDING DRUM SHAFT OR VIA CHAIN TRANSMISSION
IN THE MANUAL RELEASE SYSTEM THERE IS A SPECIFIC MECHANISM THAT PREVENTS FEEDING DURING THE CHAIN PULLING PHASE.
SUITABLE FOR INDUSTRIAL USE
EXTREMELY COMPACT AND QUIET THREE-PHASE GEAR MOTOR
IRREVERSIBLE WORM GEAR/GEARBOX ENTIRELY IN OIL BATH TO ENSURE MECHANICAL LOCKING OF THE DOOR
CAN BE INSTALLED DIRECTLY ON THE WINDING DRUM SHAFT OR VIA CHAIN TRANSMISSION
IN THE MANUAL RELEASE SYSTEM THERE IS A SPECIFIC MECHANISM THAT PREVENTS FEEDING DURING THE CHAIN PULLING PHASE.
6120024
MERCURY V 3 PH
400V
MERCURY V 3 PH
400V
TECHNICAL DETAILS:
- POWER SUPPLY (V): 400
- ELECTRIC MOTOR (V): ASYNCHRONOUS 3-PHASE
- POWER (W): 420
- CURRENT (A): 1.1
- ROTATION SPEED (TURNS/MIN): 23
- THERMAL PROTECTION (°C): 140
- OPERATING FREQUENCY AT 20°C: S3 - 60%
- MAX. CONSECUTIVE CYCLES: 6
- MOTION TRANSMISSION THROUGH SHAFT: Ø 25.4 MM
- NOMINAL SHAFT TORQUE (NM): 70
- MAX. TURNS ROPE WINDING DRUMS: 24 TURNS
- OPERATING TEMPERATURE (°C): -20 +55
- GEARED MOTOR WEIGHT (KG): 14
- DEGREE OF PROTECTION: IP54
- POWER SUPPLY (V): 400
- ELECTRIC MOTOR (V): ASYNCHRONOUS 3-PHASE
- POWER (W): 420
- CURRENT (A): 1.1
- ROTATION SPEED (TURNS/MIN): 23
- THERMAL PROTECTION (°C): 140
- OPERATING FREQUENCY AT 20°C: S3 - 60%
- MAX. CONSECUTIVE CYCLES: 6
- MOTION TRANSMISSION THROUGH SHAFT: Ø 25.4 MM
- NOMINAL SHAFT TORQUE (NM): 70
- MAX. TURNS ROPE WINDING DRUMS: 24 TURNS
- OPERATING TEMPERATURE (°C): -20 +55
- GEARED MOTOR WEIGHT (KG): 14
- DEGREE OF PROTECTION: IP54
