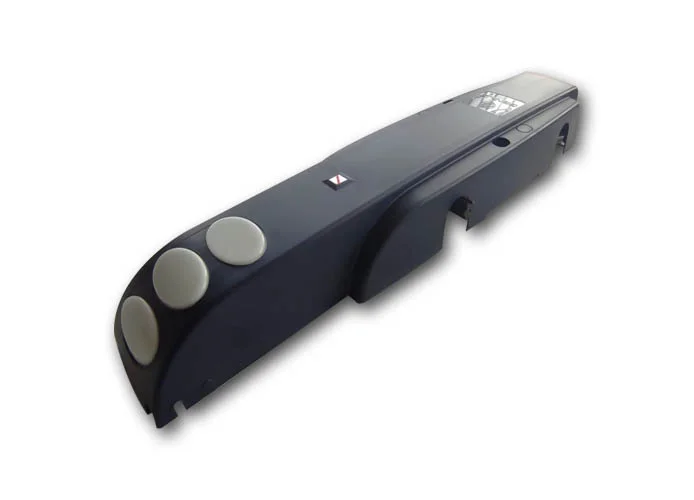

genius irreversible gearmotor euro breeze 06 c sb/rh 230v 6120036
Brand: GENIUS
SKU: 6120036
£734.00 £344.98VAT INCLUDED |
|---|
genius irreversible gearmotor euro breeze 06 c sb/rh 230v 6120036
GENIUS - EURO BREEZE 06 IRREVERSIBLE GEARMOTOR WITH INTEGRATED GEO 07 CONTROL BOARD FOR UP-AND-OVER DOORS UP TO 3,3 x 3 m ( 5 x 3 m WITH TWO MOTORS)
SUITABLE FOR RESIDENTIAL USE
INTEGRATED ELECTRIC LIMIT SWITCHES AND COURTESY LAMP
SUPPORTING CROSSBAR PREPARED FOR THE INSTALLATION OF THE GEARED MOTOR IN VARIOUS POSITIONS
POWER SUPPLY:230V AC
MODEL WITH CONTROL UNIT GEO 07 ON BOARD
SUITABLE FOR RESIDENTIAL USE
INTEGRATED ELECTRIC LIMIT SWITCHES AND COURTESY LAMP
SUPPORTING CROSSBAR PREPARED FOR THE INSTALLATION OF THE GEARED MOTOR IN VARIOUS POSITIONS
POWER SUPPLY:230V AC
MODEL WITH CONTROL UNIT GEO 07 ON BOARD
6120036
EURO BREEZE 06 C SB/RH
230V AC
EURO BREEZE 06 C SB/RH
230V AC
TECHNICAL DETAILS:
- POWER SUPPLY (V): 230
- ELETTRIC MOTOR (V): 230
- POWER (W): 350
- CURRENT (A): 1.5
- THERMAL PROTECTION (°C): 140
- CAPACITOR (μF): 10
- MAX. TORQUE (NM): 300
- ANGULAR SPEED (°/SEC): 12
- OPENING TIME AT 90° (SEC):¹ 15
- USAGE FREQUENCY AT 20°C: S3 - 30%
- CYCLES PER HOUR AT 20°C: ≥24
- OPERATING TEMPERATURE (°C): 20 +55
- OPERATOR WEIGHT (KG): 7.5
- DEGREE OF PROTECTION²: IP44
- POWER SUPPLY (V): 230
- ELETTRIC MOTOR (V): 230
- POWER (W): 350
- CURRENT (A): 1.5
- THERMAL PROTECTION (°C): 140
- CAPACITOR (μF): 10
- MAX. TORQUE (NM): 300
- ANGULAR SPEED (°/SEC): 12
- OPENING TIME AT 90° (SEC):¹ 15
- USAGE FREQUENCY AT 20°C: S3 - 30%
- CYCLES PER HOUR AT 20°C: ≥24
- OPERATING TEMPERATURE (°C): 20 +55
- OPERATOR WEIGHT (KG): 7.5
- DEGREE OF PROTECTION²: IP44
