genius automation kit blizzard 400 enc 433 MHz 24v 104016
Brand: GENIUS
SKU: 104016
£468.00 £336.96VAT INCLUDED |
|---|
genius automation kit blizzard 400 enc 433 MHz 24v 104016
GENIUS - KIT FOR SLIDING GATES WEIGHING UP TO 400kg, EQUIPPED WITH ACCESSORIES
- IRREVERSIBLE GEARMOTOR EQUIPPED WITH MAGNETIC LIMIT SWITCHES
- COMPLETE MOVEMENT CONTROL AND EFFECTIVE RESPONSE TO REVERSAL ON OBSTACLE.
- ELECTRONIC BOARD WITH TRANSPARENT PLASTIC PROTECTION HOUSING AND EXTERNAL PROGRAMMING BUTTONS
- WIDE SELECTION OF OPERATING LOGICS AND PARAMETERS
- COMPACT DIMENSIONS
- LARGE INTERIOR SPACE FOR CABLING AND FLEXIBLE HEIGHT AND DEPTH ADJUSTMENT
- FREQUENCY 433 MHz - RC
KIT BLIZZARD ENC 400
104016
24V DC
- IRREVERSIBLE GEARMOTOR EQUIPPED WITH MAGNETIC LIMIT SWITCHES
- COMPLETE MOVEMENT CONTROL AND EFFECTIVE RESPONSE TO REVERSAL ON OBSTACLE.
- ELECTRONIC BOARD WITH TRANSPARENT PLASTIC PROTECTION HOUSING AND EXTERNAL PROGRAMMING BUTTONS
- WIDE SELECTION OF OPERATING LOGICS AND PARAMETERS
- COMPACT DIMENSIONS
- LARGE INTERIOR SPACE FOR CABLING AND FLEXIBLE HEIGHT AND DEPTH ADJUSTMENT
- FREQUENCY 433 MHz - RC
KIT BLIZZARD ENC 400
104016
24V DC

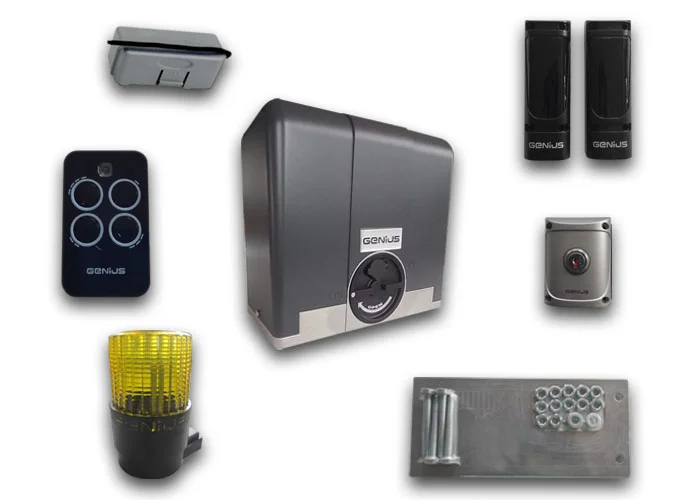

IT INCLUDES:
- 1 6110080 Electromechanical operator blizzard enc 400 (with sprint 24 control board and integrated encoder and lock-protected release)
- 1 737000 Foundation plate for blizzard
- 1 6100148 Vega bus photocells
- 1 6100334 4-channel transmitter echo tx4 rc 433 mhz
- 1 JA31101 Quick 1 key-operated selector
- 1 6100346 Modulo di frequenza RQFZ 433 MHz
- 1 6100316 Guard 24v led flashing lamp
- 1 Warning sign
TECHNICAL DETAILS:
- POWER SUPPLY (V) 230
- ELECTRICAL MOTOR (V) 24
- NOMINAL POWER (W) 140
- MAX. THRUST (N) 310
- PINION TYPE Z16 MOD.4
- LEAF SPEED (M/MIN) 12
- USE FREQUENCY: CONTINUOUS
- OPERATING TEMPERATURE (°C) -20 +55
- DEGREE OF PROTECTION IP44
