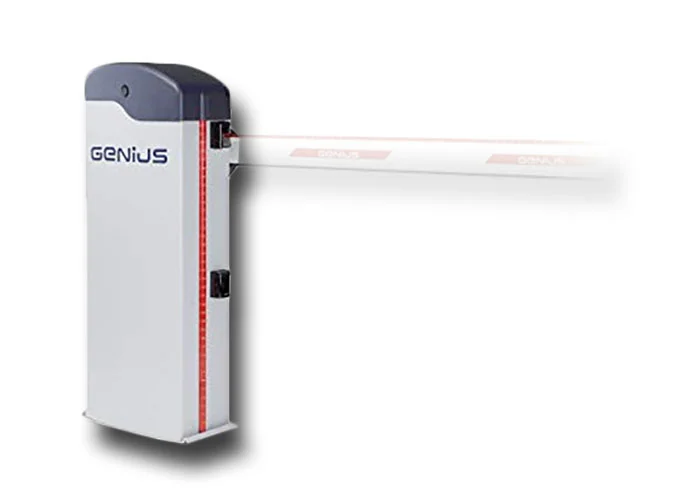

genius automatic barrier rainbow 524 c 24v 6130034
Brand: GENIUS
SKU: 6130034
£2,147.00 £1,009.09VAT INCLUDED |
|---|
genius automatic barrier rainbow 524 c 24v 6130034
GENIUS IRREVERSIBLE AUTOMATIC BARRIER WITH ENCODER AND LYNX 07 INTEGRATED
BAR UP TO 5m (NOT INCLUDED)
AUTOMATIC ROD BALANCING BY MEANS OF 1 OR 2 SPRINGS OF YOUR CHOICE
LUMINOUS WARNING BEACON FOR BARRIER HOUSING
ERGONOMICALLY POSITIONED AND EASILY ACCESSIBLE CONTROL PANEL
EQUIPPED WITH ENCODER FOR OBSTACLE DETECTION
USER-FRIENDLY ROTARY RELEASE WITH CUSTOMISED KEY
CERTIFIED FOR CONTINUOUS USE FOR MORE THAN 1.000.000 OPERATIONS
ACCESSORIES NOT INCLUDED
ROD AND FOUNDATION PLATE NOT INCLUDED
BAR UP TO 5m (NOT INCLUDED)
AUTOMATIC ROD BALANCING BY MEANS OF 1 OR 2 SPRINGS OF YOUR CHOICE
LUMINOUS WARNING BEACON FOR BARRIER HOUSING
ERGONOMICALLY POSITIONED AND EASILY ACCESSIBLE CONTROL PANEL
EQUIPPED WITH ENCODER FOR OBSTACLE DETECTION
USER-FRIENDLY ROTARY RELEASE WITH CUSTOMISED KEY
CERTIFIED FOR CONTINUOUS USE FOR MORE THAN 1.000.000 OPERATIONS
ACCESSORIES NOT INCLUDED
ROD AND FOUNDATION PLATE NOT INCLUDED
RAINBOW 524 C 6130034
24V
24V
TECHNICAL DETAILS:
- POWER SUPPLY (V): 230/115
- ELECTRIC MOTOR (V): 24
- MAXIMUM STARTING POWER (W): 280
- RATED MOTOR POWER (W): 160
- MAX. TORQUE AT 24VDC (NM): 140
- NOMINAL OPERATING TORQUE (NM): 75
- NOMINAL OPEN/CLOSE TIME (SEC):¹ 4 TO 8
- OPERATING FREQUENCY AT 20°C: 70%.
- OPERATING TEMPERATURE (°C): -20 +55
- NOISE (DBA): >70
- DEGREE OF PROTECTION: IP54
- OPERATOR WEIGHT (KG): 66
Complementary accessories (not included):
- 6100294: Foundation plate
- 6100201: Kit of 6 GENIUS logo stickers
- ELECTRIC MOTOR (V): 24
- MAXIMUM STARTING POWER (W): 280
- RATED MOTOR POWER (W): 160
- MAX. TORQUE AT 24VDC (NM): 140
- NOMINAL OPERATING TORQUE (NM): 75
- NOMINAL OPEN/CLOSE TIME (SEC):¹ 4 TO 8
- OPERATING FREQUENCY AT 20°C: 70%.
- OPERATING TEMPERATURE (°C): -20 +55
- NOISE (DBA): >70
- DEGREE OF PROTECTION: IP54
- OPERATOR WEIGHT (KG): 66
Complementary accessories (not included):
- 6100294: Foundation plate
- 6100201: Kit of 6 GENIUS logo stickers
