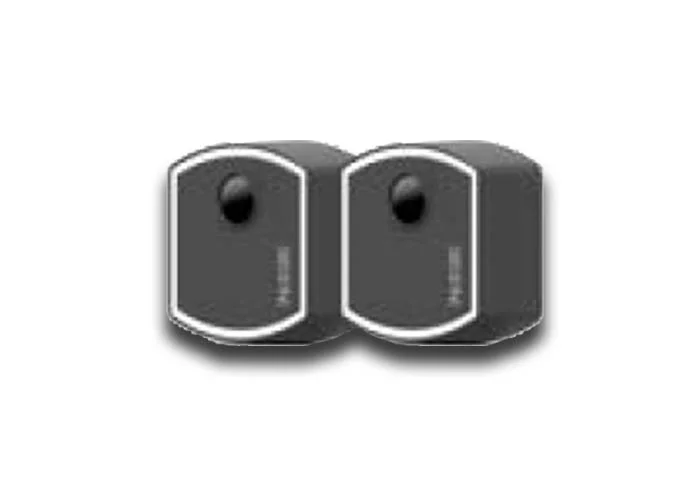

fadini pair of synchronised wall-mounted photocells 20m 24v zero.ph 160l
Brand: FADINI
SKU: 160L
£98.00 £66.84VAT INCLUDED |
|---|
fadini pair of synchronised wall-mounted photocells 20m 24v zero.ph 160l
FADINI - PAIR OF SYNCHRONISED WALL-MOUNTED PHOTOCELLS, RANGE 20 MT
- LED LIGHTING FRAME
- ABS BODY WITH HIGH RESISTANCE TO WEATHERING
- RELAY OUTPUT FOR CONNECTION TO ANY ELPRO SERIES CONTROL PROGRAMMER OR TO AN EXISTING SYSTEM.
SUPPLY TENSION (Vac/dc): 12/24
MAX. TRANSMITTER ABSORPTION (mA): 26
MAX. RECEIVER ABSORPTION (mA): 36
WORKING TEMPERATURE (°C): -20 ÷ +70
OUTPUT CONTACT (Vdc, A/Vac, A): 30, 1/125, 0,3
RANGE (m): 20
CONTACT RELIEF TIME (ms): 6
DEGREE OF PROTECTION IP: 55.
- LED LIGHTING FRAME
- ABS BODY WITH HIGH RESISTANCE TO WEATHERING
- RELAY OUTPUT FOR CONNECTION TO ANY ELPRO SERIES CONTROL PROGRAMMER OR TO AN EXISTING SYSTEM.
PAIR OF SYNCHRONISED WALL-MOUNTED PHOTOCELLS
160L ZERO.PH
FREQUENCY MODULATED LIGHT (Hz): 625/320160L ZERO.PH
SUPPLY TENSION (Vac/dc): 12/24
MAX. TRANSMITTER ABSORPTION (mA): 26
MAX. RECEIVER ABSORPTION (mA): 36
WORKING TEMPERATURE (°C): -20 ÷ +70
OUTPUT CONTACT (Vdc, A/Vac, A): 30, 1/125, 0,3
RANGE (m): 20
CONTACT RELIEF TIME (ms): 6
DEGREE OF PROTECTION IP: 55.
