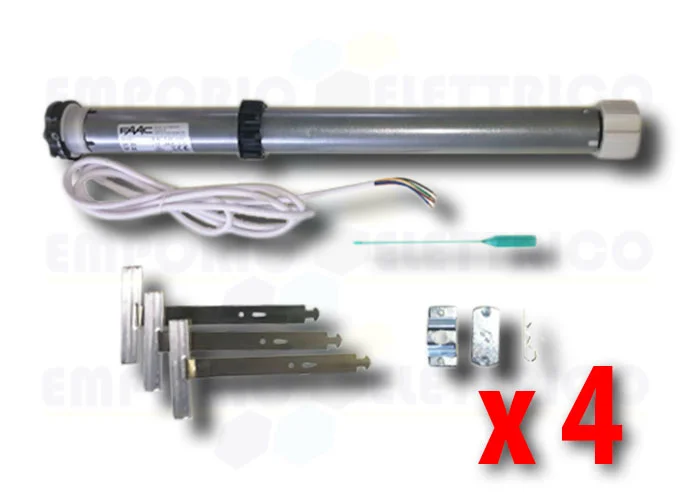

faac tm2k kit tubular mini motor tm245 50/12 90 kg 143203 (ex 132037) x 4
Brand: FAAC
SKU: 143203 4
£404.00 £339.36VAT INCLUDED |
|---|
faac tm2k kit tubular mini motor tm245 50/12 90 kg 143203 (ex 132037) x 4
FAAC - 4 x AUTOMATION KIT FOR MANUAL OR ALREADY MOTORIZED SHUTTERS
MAX COUPLE 50 NM
LIFTING CAPACITY 90 KG
MAX SPEED 12 RPM
POWER SUPPLY VOLTAGE 230V~ 50HZ
POWER MAX 275 W
MOTOR DIAMETER 45 MM
LENGTH WITH ADAPTER (L) 546 mm
PROTECTION DEGREE IP 44
- 4 Adapters for octagonal tube Ø60mm
- 4 Supports with square pin
- 12 Flexible steel connections for attaching the roller shutter to the roller
winder
MAX COUPLE 50 NM
LIFTING CAPACITY 90 KG
MAX SPEED 12 RPM
POWER SUPPLY VOLTAGE 230V~ 50HZ
POWER MAX 275 W
MOTOR DIAMETER 45 MM
LENGTH WITH ADAPTER (L) 546 mm
PROTECTION DEGREE IP 44
TM2K 50/12 143203 4
(EX 132037)
- 4 TM245 Tubular Motors (complete with instructions and adjustment key)(EX 132037)
- 4 Adapters for octagonal tube Ø60mm
- 4 Supports with square pin
- 12 Flexible steel connections for attaching the roller shutter to the roller
winder
