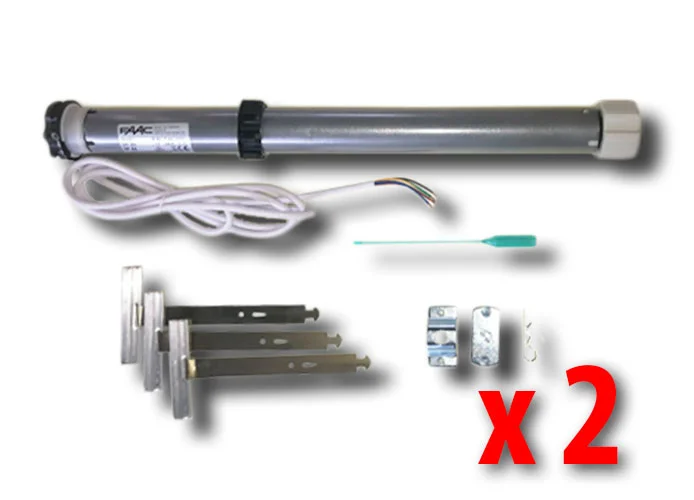

faac tm2k kit tubular mini motor tm245 30/17 55 kg 143202 (ex 132036) x 2
Brand: FAAC
SKU: 143202 2
£174.00 £146.16VAT INCLUDED |
|---|
faac tm2k kit tubular mini motor tm245 30/17 55 kg 143202 (ex 132036) x 2
FAAC - 2 x AUTOMATION KIT FOR MANUAL OR ALREADY MOTORIZED SHUTTERS
MAX COUPLE 30 NM
LIFTING CAPACITY 55 KG
MAX SPEED 17 RPM
POWER SUPPLY VOLTAGE 230V~ 50HZ
POWER MAX 250 W
MOTOR DIAMETER 45 MM
LENGTH WITH ADAPTER (L) 546 mm
PROTECTION DEGREE IP 44
- 2 Adapters for octagonal tube Ø60mm
- 2 Supports with square pin
- 6 Flexible steel connections for attaching the roller shutter to the roller winder
MAX COUPLE 30 NM
LIFTING CAPACITY 55 KG
MAX SPEED 17 RPM
POWER SUPPLY VOLTAGE 230V~ 50HZ
POWER MAX 250 W
MOTOR DIAMETER 45 MM
LENGTH WITH ADAPTER (L) 546 mm
PROTECTION DEGREE IP 44
TM2K 30/17 143202 2
- 2 TM245 Tubular Motors (complete with instructions and adjustment key)- 2 Adapters for octagonal tube Ø60mm
- 2 Supports with square pin
- 6 Flexible steel connections for attaching the roller shutter to the roller winder
