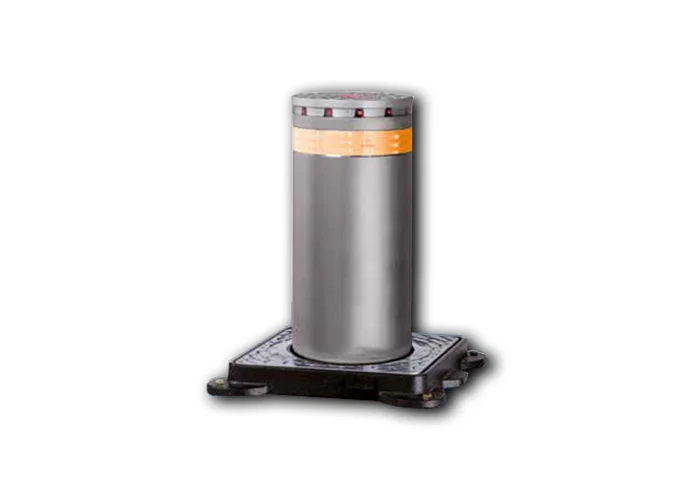

faac stainless steel automatic retractable bollard j275 ha v2 h800 116037
Brand: FAAC
SKU: 116037
faac stainless steel automatic retractable bollard j275 ha v2 h800 116037
FAAC - AUTOMATIC BOLLARD FOR COMMERCIAL AND INDUSTRIAL AREAS AND CITY GATES.
THIS RETRACTABLE BOLLARD J275 HA V2 IS RECOMMENDED FOR ALL AREAS WHERE MANY TRANSITS ARE EXPECTED PER DAY
- HEIGHT 800MM
- GUARANTEED FOR HIGH FREQUENCIES OF USE
- FULL OPTIONAL PRODUCT, SUPPLIED ALREADY EQUIPPED WITH THE MAIN ACCESSORIES
- HYDRAULIC UNIT INTEGRATED IN THE BOLLARD
- PERFECT INTERCHANGEABILITY WITH FIRST-GENERATION BOLLARDS
- GENTLE STOP FUNCTION TO ENSURE A GENTLE STOP ON THE LOW LIMIT SWITCH
THE PRODUCT IS EQUIPPED WITH:
- 6 MM THICK AISI 316L STAINLESS STEEL CYLINDER WITH SATIN FINISH
- CROWN FLASHING LIGHT WITH LED LIGHT
- MOVEMENT SOUND ALARM
- EMERGENCY LOWERING IN CASE OF POWER CUT
- RELEASE KEY FOR MANUAL EMERGENCY LOWERING
- ARTICLE BY ORDER, AVAILABILITY 1-2 WEEKS.
FAAC J275 HA V2 H800
116037
THIS RETRACTABLE BOLLARD J275 HA V2 IS RECOMMENDED FOR ALL AREAS WHERE MANY TRANSITS ARE EXPECTED PER DAY
- HEIGHT 800MM
- GUARANTEED FOR HIGH FREQUENCIES OF USE
- FULL OPTIONAL PRODUCT, SUPPLIED ALREADY EQUIPPED WITH THE MAIN ACCESSORIES
- HYDRAULIC UNIT INTEGRATED IN THE BOLLARD
- PERFECT INTERCHANGEABILITY WITH FIRST-GENERATION BOLLARDS
- GENTLE STOP FUNCTION TO ENSURE A GENTLE STOP ON THE LOW LIMIT SWITCH
THE PRODUCT IS EQUIPPED WITH:
- 6 MM THICK AISI 316L STAINLESS STEEL CYLINDER WITH SATIN FINISH
- CROWN FLASHING LIGHT WITH LED LIGHT
- MOVEMENT SOUND ALARM
- EMERGENCY LOWERING IN CASE OF POWER CUT
- RELEASE KEY FOR MANUAL EMERGENCY LOWERING
- ARTICLE BY ORDER, AVAILABILITY 1-2 WEEKS.
FAAC J275 HA V2 H800
116037
| Actuator type | Hydraulic actuator | ||||
| Cylinder height above ground | 800 mm | ||||
| Cylinder diameter | 275 mm | ||||
| Cylinder treatment type | Satin-finishing - Aisi 316L | ||||
| Climbing time | ~5 s (*) | ||||
| Descent time | ~3,5 s (*) | ||||
| Emergency lowering device | YES (excludable) | ||||
| Emergency lowering time | ~1,2 s (*) | ||||
| Lifting obstacle detection | YES | ||||
| Release device | YES | ||||
| Slowing down | YES | ||||
| Mains supply voltage | 220-240V ~ 50/60Hz | ||||
| Maximum power | 575 W (*) | ||||
| Hydraulic unit degree of protection | IP67 | ||||
| Type of use | Intensive use (Traffic) | ||||
| 38.000 J | ||||
| Breaking resistance | 128.000 J | ||||
| Cockpit weight | 55 Kg | ||||
| Bollard weight | 133 Kg | ||||
| Load class (EN 124) | C250 (25t) | ||||
| Ambient operating temperature | -15 °C / +55 °C | ||||
| Ambient operating temperature with heater | -25 °C / +55 °C | ||||
