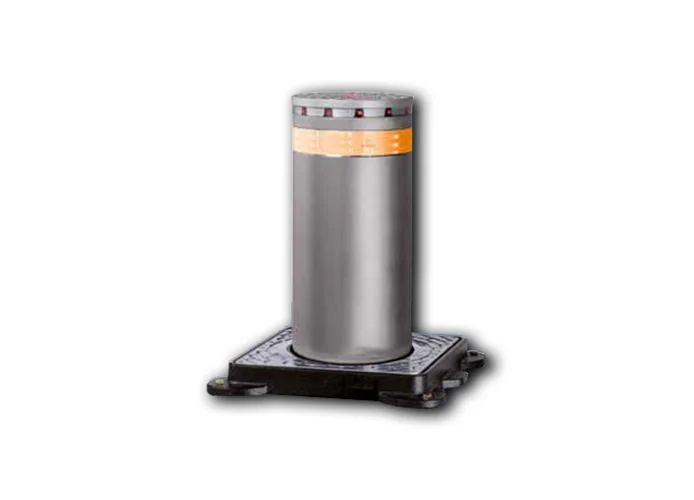

faac stainless steel automatic retractable bollard j275 ha v2 h600 116036
Brand: FAAC
SKU: 116036
faac stainless steel automatic retractable bollard j275 ha v2 h600 116036
FAAC - AUTOMATIC BOLLARD FOR COMMERCIAL AND INDUSTRIAL AREAS AND CITY GATES.
THIS RETRACTABLE BOLLARD J275 HA V2 IS RECOMMENDED FOR ALL AREAS WHERE MANY TRANSITS ARE EXPECTED PER DAY
- HEIGHT 600MM
- GUARANTEED FOR HIGH FREQUENCIES OF USE
- FULL OPTIONAL PRODUCT, SUPPLIED ALREADY EQUIPPED WITH THE MAIN ACCESSORIES
- HYDRAULIC UNIT INTEGRATED IN THE BOLLARD
- PERFECT INTERCHANGEABILITY WITH FIRST-GENERATION BOLLARDS
- GENTLE STOP FUNCTION TO ENSURE A GENTLE STOP ON THE LOW LIMIT SWITCH
THE PRODUCT IS EQUIPPED WITH:
- 6 MM THICK STAINLESS STEEL CYLINDER WITH SATIN FINISH
- CROWN FLASHING LIGHT WITH LED LIGHT
- MOVEMENT SOUND ALARM
- EMERGENCY LOWERING IN CASE OF POWER CUT
- RELEASE KEY FOR MANUAL EMERGENCY LOWERING
- ARTICLE BY ORDER, AVAILABILITY 1-2 WEEKS.
FAAC J275 HA V2 H600
116036
THIS RETRACTABLE BOLLARD J275 HA V2 IS RECOMMENDED FOR ALL AREAS WHERE MANY TRANSITS ARE EXPECTED PER DAY
- HEIGHT 600MM
- GUARANTEED FOR HIGH FREQUENCIES OF USE
- FULL OPTIONAL PRODUCT, SUPPLIED ALREADY EQUIPPED WITH THE MAIN ACCESSORIES
- HYDRAULIC UNIT INTEGRATED IN THE BOLLARD
- PERFECT INTERCHANGEABILITY WITH FIRST-GENERATION BOLLARDS
- GENTLE STOP FUNCTION TO ENSURE A GENTLE STOP ON THE LOW LIMIT SWITCH
THE PRODUCT IS EQUIPPED WITH:
- 6 MM THICK STAINLESS STEEL CYLINDER WITH SATIN FINISH
- CROWN FLASHING LIGHT WITH LED LIGHT
- MOVEMENT SOUND ALARM
- EMERGENCY LOWERING IN CASE OF POWER CUT
- RELEASE KEY FOR MANUAL EMERGENCY LOWERING
- ARTICLE BY ORDER, AVAILABILITY 1-2 WEEKS.
FAAC J275 HA V2 H600
116036
| Hydraulic actuator | ||||||||
| Cylinder height above ground | 600 mm | ||||||||
| Cylinder diameter | 275 mm | ||||||||
| Cylinder treatment type | Satin-finishing - AISI 316L | ||||||||
| Climbing time | ~5 s (*) | ||||||||
| Descent time | ~3,5 s (*) | ||||||||
| Emergency lowering device | YES (excludable) | ||||||||
| Emergency lowering time | ~1,2 s (*) | ||||||||
| Lifting obstacle detection | YES | ||||||||
| Release device | YES | ||||||||
| Slowing down | YES | ||||||||
| Mains supply voltage | 220-240V ~ 50/60Hz | ||||||||
| Maximum power | 575 W (*) | ||||||||
| Hydraulic unit degree of protection | IP67 | ||||||||
| Type of use | Intensive use (Traffic) | ||||||||
| Impact resistance | 38.000 J | ||||||||
| Breaking resistance | 128.000 J | ||||||||
| Cockpit weight | 55 Kg | ||||||||
| Bollard weight | 113 Kg | ||||||||
| Load class (EN 124) | C250 (25t) | ||||||||
| Ambient operating temperature | -15 °C / +55 °C | ||||||||
| Ambient operating temperature with heater | -25 °C / +55 °C | ||||||||
