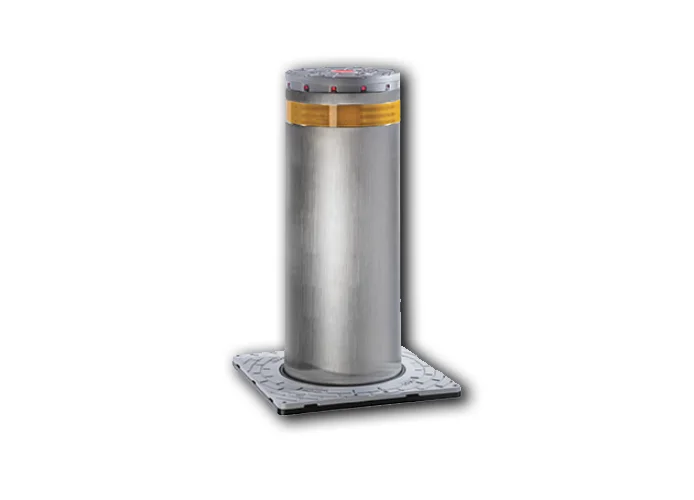

faac stainless steel automatic retractable bollard j275 ha 2k H800 116431
Brand: FAAC
SKU: 116431
faac stainless steel automatic retractable bollard j275 ha 2k H800 116431
FAAC - AUTOMATIC RETRACTABLE BOLLARD FOR PERIMETER PROTECTION
THIS AUTOMATIC BOLLARD IS RECOMMENDED FOR CONTROLLING VEHICLE TRAFFIC AND PERMANENTLY PROTECTING THE PERIMETER OF SENSITIVE SITES
- GUARANTEED FOR HIGH FREQUENCIES OF USE
- SIMPLIFIED MAINTENANCE
- HEIGHT 800MM
- HYDRAULIC UNIT INTEGRATED IN THE BOLLARD
- GENTLE STOP FUNCTION TO ENSURE A GENTLE STOP ON THE LOW LIMIT SWITCH
- TAMPER-PROOF HEADER; PROTECTED BY ARMOURED LOCK WITH CODED KEY (TO PREVENT UNAUTHORISED ACCESS)
- CAPABLE OF STOPPING A 6,800KG TRUCK GOING AT 50KM/H
THE PRODUCT IS EQUIPPED WITH:
- 6 MM THICK AISI 316L STAINLESS STEEL CYLINDER WITH SATIN FINISH
- CROWN FLASHING LIGHT WITH LED LIGHT
- MOVEMENT SOUND ALARM
- EMERGENCY MANUAL LOWERING RELEASE KEY (1PC)
- ENCRYPTED KEY TO ACCESS THE MANUAL LOWERING MECHANISM
- ARTICLE BY ORDER, AVAILABILITY 1-2 WEEKS.
FAAC J275 HA 2K H800 INOX
116431
THIS AUTOMATIC BOLLARD IS RECOMMENDED FOR CONTROLLING VEHICLE TRAFFIC AND PERMANENTLY PROTECTING THE PERIMETER OF SENSITIVE SITES
- GUARANTEED FOR HIGH FREQUENCIES OF USE
- SIMPLIFIED MAINTENANCE
- HEIGHT 800MM
- HYDRAULIC UNIT INTEGRATED IN THE BOLLARD
- GENTLE STOP FUNCTION TO ENSURE A GENTLE STOP ON THE LOW LIMIT SWITCH
- TAMPER-PROOF HEADER; PROTECTED BY ARMOURED LOCK WITH CODED KEY (TO PREVENT UNAUTHORISED ACCESS)
- CAPABLE OF STOPPING A 6,800KG TRUCK GOING AT 50KM/H
THE PRODUCT IS EQUIPPED WITH:
- 6 MM THICK AISI 316L STAINLESS STEEL CYLINDER WITH SATIN FINISH
- CROWN FLASHING LIGHT WITH LED LIGHT
- MOVEMENT SOUND ALARM
- EMERGENCY MANUAL LOWERING RELEASE KEY (1PC)
- ENCRYPTED KEY TO ACCESS THE MANUAL LOWERING MECHANISM
- ARTICLE BY ORDER, AVAILABILITY 1-2 WEEKS.
FAAC J275 HA 2K H800 INOX
116431
| Actuator type | Hydraulic actuator | |
| Cylinder height above ground | 800 mm | |
| Cylinder diameter | 275 mm | |
| Cylinder treatment type | Satin-finished Aisi 316 stainless steel |
|
| Reflective band height | 55 mm | |
| Standard reflective band colour | White | |
| Climbing time | ~8 s | |
| Descent time | ~4,5 s | |
| Emergency lowering device | YES (excludable) | |
| Emergency lowering time | ~2 s | |
| Lifting obstacle detection | YES (excludable) | |
| Release device | YES | |
| Slowing down | YES | |
| Mains supply voltage | 220-240V – 50/60Hz | |
| Maximum power | 575 W (*) | |
| Hydraulic unit degree of protection | IP67 | |
| Type of use | Use in security | |
| Breaking resistance | 673.000 J in double units | |
| Cockpit weight | 100 kg | |
| Bollard weight | 158 kg | |
| Ambient operating temperature | -15°C / +55°C | |
| Ambient operating temperature with heater | -25°C / +55°C | |
| Load class (EN 124) | C250 (25t) | |
