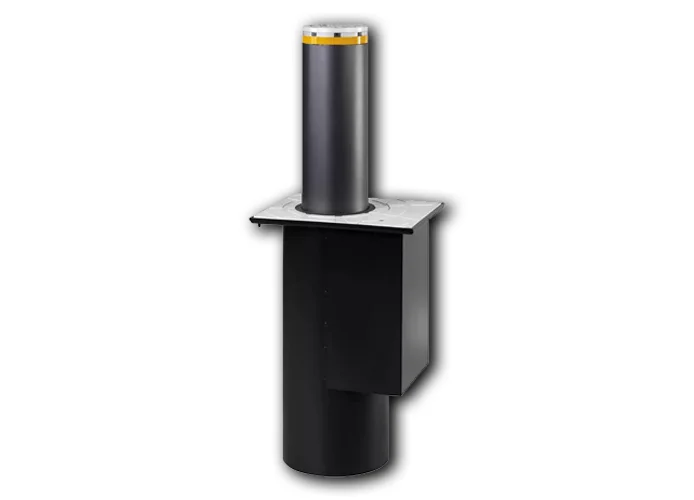

faac semi-automatic stainless steel bollard j200 sa h600 116509
Brand: FAAC
SKU: 116509
faac semi-automatic stainless steel bollard j200 sa h600 116509
FAAC - SEMI-AUTOMATIC BOLLARD FOR COMMERCIAL AND INDUSTRIAL AREAS AND CITY GATES.
THIS BOLLARD SOLVES TRANSIT AND PARKING CONTROL PROBLEMS WITHOUT THE NEED FOR ELECTRICITY THANKS TO THE GAS ACTUATOR
- HEIGHT 600MM
- EASE OF TRANSPORT, STORAGE AND INSTALLATION
- POWER SUPPLY AND WIRING NOT REQUIRED
- SINGLE-ACTING GAS ACTUATOR
- RESIDENTIAL USE
THE PRODUCT IS EQUIPPED WITH :
- 6 MM THICK STAINLESS STEEL CYLINDER WITH SATIN-FINISH TREATMENT
- STAINLESS STEEL AISI 316L SATIN FINISH
- MECHANICAL BLOCK IN HIGH POSITION WITH SPECIAL RELEASE KEY
- SUPPORT STRUCTURE TO BE CEMENTED WITH CATAPHORESIS TREATMENT.
- ARTICLE BY ORDER, AVAILABILITY 1-2 WEEKS.
FAAC J200 SA H600
116509
THIS BOLLARD SOLVES TRANSIT AND PARKING CONTROL PROBLEMS WITHOUT THE NEED FOR ELECTRICITY THANKS TO THE GAS ACTUATOR
- HEIGHT 600MM
- EASE OF TRANSPORT, STORAGE AND INSTALLATION
- POWER SUPPLY AND WIRING NOT REQUIRED
- SINGLE-ACTING GAS ACTUATOR
- RESIDENTIAL USE
THE PRODUCT IS EQUIPPED WITH :
- 6 MM THICK STAINLESS STEEL CYLINDER WITH SATIN-FINISH TREATMENT
- STAINLESS STEEL AISI 316L SATIN FINISH
- MECHANICAL BLOCK IN HIGH POSITION WITH SPECIAL RELEASE KEY
- SUPPORT STRUCTURE TO BE CEMENTED WITH CATAPHORESIS TREATMENT.
- ARTICLE BY ORDER, AVAILABILITY 1-2 WEEKS.
FAAC J200 SA H600
116509
| Actuator type | Single-acting gas actuator | |
| Cylinder height above ground | 600 mm | |
| Cylinder diameter | 200 mm | |
| Cylinder material type | AISI 316L satin-finished |
|
| Cylinder treatment type | Satin-finishing | |
| Release device | Key (supplied) | |
| Reflective band height | 25 mm | |
| Standard reflective band colour | Orange | |
| Total weight | 82 Kg | |
| Underground structure dimensions (LxPxH) | 400 x 500 x 800 mm | |
| Excavation dimensions (LxPxH) | 700 x 700 x 1.100 mm | |
| Load class (EN 124) | C250 | |
