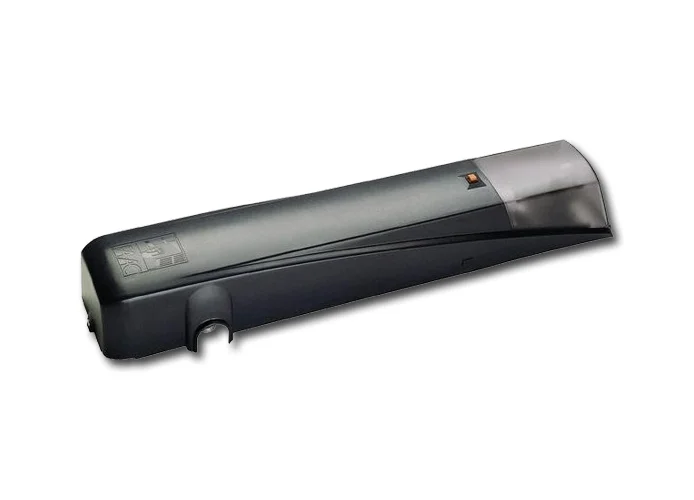

faac oil-hydraulic actuator 595 slave 230v ac 110599

FAAC - OIL-HYDRAULIC ACTUATOR FOR UP-AND-OVER DOORS WITH COUNTER-WEIGHTS, FOR RESIDENTIAL AND CONDOMINIUM USE.

- EFFECTIVE ONLY WITH THE ACTUATOR FAAC 595 110598
- FOR UP-AND-OVER DOORS UP TO 5M COUPLED TO THE ACTUATOR 110598.


FAAC - ACTUATOR 595 SLAVE
 110599

TECHNICAL DETAILS:
Supply voltage: 230 Vac
Power: 220 W
Current: 1A
Permissible torque: 400 Nm
Angular speed: 9°15'/s
Maximum leaf weight: 15 Kg/mq
Frequency of use: 50 cycles/hour
Weight: 11 kg
Degree of protection: IP 31
Remark: Without plate (slave).
