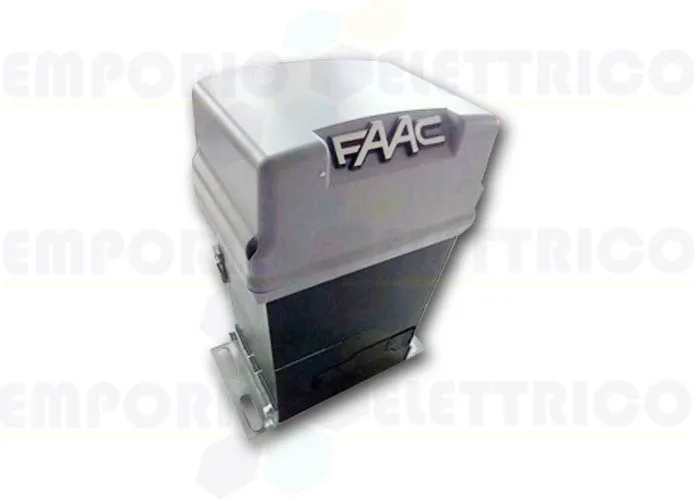

faac gearmotor 844 c z16 109925 (ex 109837)
Brand: FAAC
SKU: 109925
£1,610.00 £966.00VAT INCLUDED |
|---|
faac gearmotor 844 c z16 109925 (ex 109837)
FAAC - GEARMOTOR 230V FOR SLIDING GATES WITH LEAF WEIGHT MAX. 1800KG.
- RENEWED GEARMOTOR WITH INTEGRATED E781 ELECTRONIC CONTROL BOARD FEATURING ADJUSTABLE SPEED CONTROL LEVELS
- INCLUDES TWO DEDICATED INPUTS FOR SAFETY EDGES (NC OR 8,2 KOHM)
- NEW RETROACTIVE MOTOR CONTROL WITH HIGH-RESOLUTION ENCODER
- COMPATIBLE WITH SIMPLY CONNECT AND THE NEW FDS RADIO TECHNOLOGY
- PINION Z16 MODULE 4.
FAAC - 844 C Z16
109925
- RENEWED GEARMOTOR WITH INTEGRATED E781 ELECTRONIC CONTROL BOARD FEATURING ADJUSTABLE SPEED CONTROL LEVELS
- INCLUDES TWO DEDICATED INPUTS FOR SAFETY EDGES (NC OR 8,2 KOHM)
- NEW RETROACTIVE MOTOR CONTROL WITH HIGH-RESOLUTION ENCODER
- COMPATIBLE WITH SIMPLY CONNECT AND THE NEW FDS RADIO TECHNOLOGY
- PINION Z16 MODULE 4.
FAAC - 844 C Z16
109925
TECHNICAL FEATURES:
MAINS SUPPLY VOLTAGE: 220-240V - 50/60 HZ
MAX. POWER: 230w
PINION: Z16 MODULE 4
MAX. THRUST FORCE: 1300N
MAX. LEAF WEIGHT: 1800KG
MAX. LEAF SPEED: 9.6M/MIN
MAX. LEAF LENGTH: 40M
STOPPING SPACE: 30MM
DEGREE OF PROTECTION: IP44
STARTING CAPACITOR: 18 µF
OPERATING AMBIENT TEMPERATURE: -20° ÷ +55°.
THERMAL PROTECTION:120° SELF-RESTORING
ELECTRONIC EQUIPMENT: E781 BUILT-IN.
