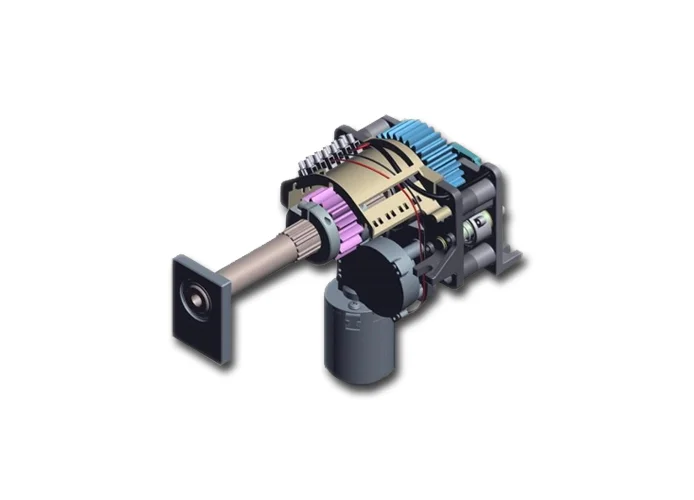

faac electromechanical actuator 24vdc for swing gates s2500i 104250
Brand: FAAC
SKU: 104250
£1,068.00 £897.12VAT INCLUDED |
|---|
faac electromechanical actuator 24vdc for swing gates s2500i 104250
FAAC - ELECTROMECHANICAL ACTUATOR 24 V S2500I FOR SWING GATES.
MODERN DESIGN, INTEGRATED FLASHLIGHT, INTEGRATED ADJUSTABLE MECHANICAL STOPS TO DEFINE END STOP POINTS FOR OPENING AND CLOSING (OPTIONAL).
MAX. LEAF WIDTH: 2 - 2,5 M
MAX. LEAF WEIGHT: 250 KG
IT INCLUDES:
- 1 ELECTROMECHANICAL ACTUATOR 104250
- 1 ACTUATOR-HINGE FASTENER
- 1 PACKAGE OF GREASE
- 1 RELEASE KEY
THE OPERATOR IS COMPATIBLE WITH FAAC E124 ELECTRONIC BOARD WITH FW VERSION 4.0 OR LATER
ELECTROMECHANICAL ACTUATOR FOR SWING GATES
MODEL S2500I 104250
24V
MODERN DESIGN, INTEGRATED FLASHLIGHT, INTEGRATED ADJUSTABLE MECHANICAL STOPS TO DEFINE END STOP POINTS FOR OPENING AND CLOSING (OPTIONAL).
MAX. LEAF WIDTH: 2 - 2,5 M
MAX. LEAF WEIGHT: 250 KG
IT INCLUDES:
- 1 ELECTROMECHANICAL ACTUATOR 104250
- 1 ACTUATOR-HINGE FASTENER
- 1 PACKAGE OF GREASE
- 1 RELEASE KEY
THE OPERATOR IS COMPATIBLE WITH FAAC E124 ELECTRONIC BOARD WITH FW VERSION 4.0 OR LATER
ELECTROMECHANICAL ACTUATOR FOR SWING GATES
MODEL S2500I 104250
24V
TECHNICAL DETAILS:
Mains supply: 220-240V~ 50/60 Hz
Electric motor: with brushes 24V
Max power: 40W
Max Torque: 320Nm
Maximum angular speed: 10°/s
Max leaf weight: 250 Kg
Door opening angle max: 165°
Operating temperature: -20°C ÷ + 55°C
Degree of protection: IP X4
Weight: 7,9 Kg (actuator) – 3,3 Kg (hinge) – 1,8 Kg (cover)
Sizes (LxPxH): 340 x 160 x 150 mm
Electronic board: not included
Mechanical stops on opening and closing: optional
Continuous use of time (ROT): Continuous at 55°C
Encoder: Absolute Magnetic BUS
Max leaf width: 2 m (2,5m with electrolock)
Size of square column: 100×100, 120×120, 150×150 mm
