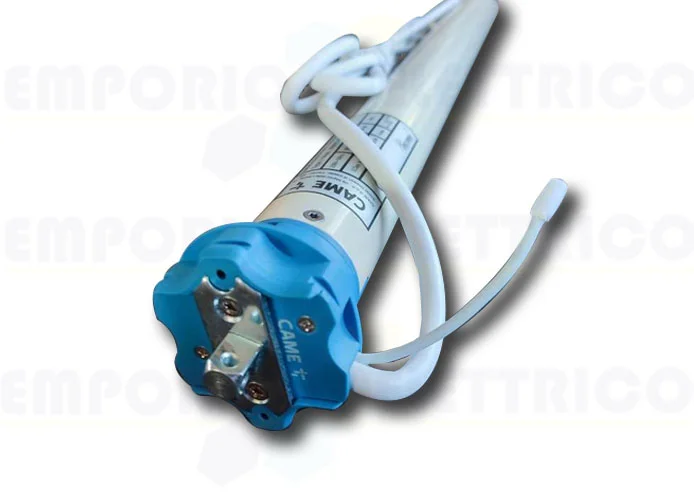

came tubular motor blinds kbs 230v 50Nm kbs51aes 809y5-0050
Brand: CAME
SKU: 809Y5-0050
£240.00 £179.74VAT INCLUDED |
|---|
came tubular motor blinds kbs 230v 50Nm kbs51aes 809y5-0050
CAME - 230V TUBULAR MOTOR FOR ROLLER BLINDS, TORQUE UP TO 50Nm
ELECTRONIC LIMIT SWITCH
869,50 MHz RADIO RECEIVER
DETECTOR OBSTACLES IN BOTH DIRECTIONS
ELECTRONIC LIMIT SWITCH
869,50 MHz RADIO RECEIVER
DETECTOR OBSTACLES IN BOTH DIRECTIONS
809Y5-0050 KBS51AES
230V
230V
| CODE | 809Y5-0010 | 809Y5-0020 | 809Y5-0030 | 809Y5-0040 | 809Y5-0050 |
| Torque (Nm) | 10 | 20 | 30 | 40 | 50 |
| Speed Rpm | 15 | 15 | 15 | 15 | 12 |
| Lifted weight (Kg)* | 18 | 36 | 55 | 74 | 92 |
| Operating time (min) | 4 | 4 | 4 | 4 | 4 |
| Degree of protection (IP) | 44 | 44 | 44 | 44 | 44 |
| Absorption (A) | 0,48 | 0,69 | 0,87 | 0,99 | 0,99 |
| Power (W) | 113 | 161 | 200 | 228 | 228 |
| Length (mm) = L1 | 604 | 604 | 654 | 654 | 654 |
| Weight (Kg) | 2,21 | 2,29 | 2,6 | 2,7 | 2,85 |
| Package dimensions (mm) | 660 x 80 x 80 | 660 x 80 x 80 | 710 x 80 x 80 | 710 x 80 x 80 | 710 x 80 x 80 |
| Motor packed weight (Kg) | 2,47 | 2,64 | 3 | 3,1 | 3,25 |
