came tubular motor blinds kbs 230v 40Nm kbs51ads 809y5-0040
Brand: CAME
SKU: 809Y5-0040
£232.00 £140.59VAT INCLUDED |
|---|
came tubular motor blinds kbs 230v 40Nm kbs51ads 809y5-0040

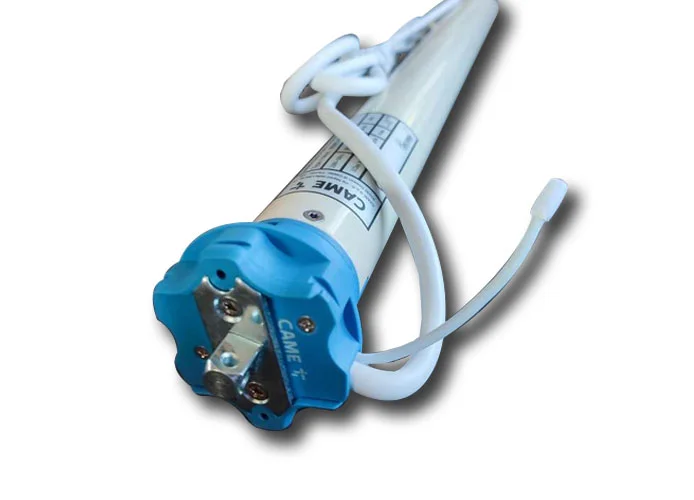

CAME - 230V TUBULAR MOTOR FOR ROLLER BLINDS, TORQUE UP TO 40Nm
ELECTRONIC LIMIT SWITCH
869,50 MHz RADIO RECEIVER
DETECTOR OBSTACLES IN BOTH DIRECTIONS
ELECTRONIC LIMIT SWITCH
869,50 MHz RADIO RECEIVER
DETECTOR OBSTACLES IN BOTH DIRECTIONS
809Y5-0040 KBS51ADS
230V
230V
| CODE | 809Y5-0010 | 809Y5-0020 | 809Y5-0030 | 809Y5-0040 | 809Y5-0050 |
| Torque (Nm) | 10 | 20 | 30 | 40 | 50 |
| Speed Rpm | 15 | 15 | 15 | 15 | 12 |
| Lifted weight (Kg)* | 18 | 36 | 55 | 74 | 92 |
| Operating time (min) | 4 | 4 | 4 | 4 | 4 |
| Degree of protection (IP) | 44 | 44 | 44 | 44 | 44 |
| Absorption (A) | 0,48 | 0,69 | 0,87 | 0,99 | 0,99 |
| Power (W) | 113 | 161 | 200 | 228 | 228 |
| Length (mm) = L1 | 604 | 604 | 654 | 654 | 654 |
| Weight (Kg) | 2,21 | 2,29 | 2,6 | 2,7 | 2,85 |
| Package dimensions (mm) | 660 x 80 x 80 | 660 x 80 x 80 | 710 x 80 x 80 | 710 x 80 x 80 | 710 x 80 x 80 |
| Motor packed weight (Kg) | 2,47 | 2,64 | 3 | 3,1 | 3,25 |
