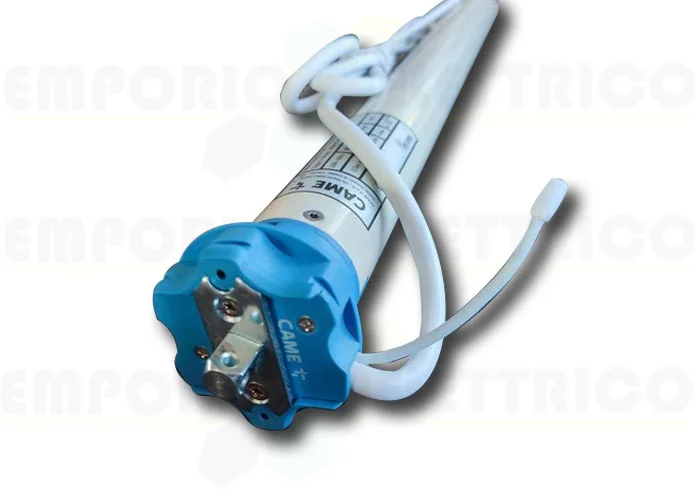

came tubular motor blinds kbs 230v 20Nm kbs51abs 809y5-0020
Brand: CAME
SKU: 809Y5-0020
£215.00 £161.01VAT INCLUDED |
|---|
came tubular motor blinds kbs 230v 20Nm kbs51abs 809y5-0020
CAME - 230V TUBULAR MOTOR FOR ROLLER BLINDS, TORQUE UP TO 20Nm
ELECTRONIC LIMIT SWITCH
869,50 MHz RADIO RECEIVER
DETECTOR OBSTACLES IN BOTH DIRECTIONS
ELECTRONIC LIMIT SWITCH
869,50 MHz RADIO RECEIVER
DETECTOR OBSTACLES IN BOTH DIRECTIONS
809Y5-0020 KBS51ABS
230V
230V
| CODE | 809Y5-0010 | 809Y5-0020 | 809Y5-0030 | 809Y5-0040 | 809Y5-0050 |
| Torque (Nm) | 10 | 20 | 30 | 40 | 50 |
| Speed Rpm | 15 | 15 | 15 | 15 | 12 |
| Lifted weight (Kg)* | 18 | 36 | 55 | 74 | 92 |
| Operating time (min) | 4 | 4 | 4 | 4 | 4 |
| Degree of protection (IP) | 44 | 44 | 44 | 44 | 44 |
| Absorption (A) | 0,48 | 0,69 | 0,87 | 0,99 | 0,99 |
| Power (W) | 113 | 161 | 200 | 228 | 228 |
| Length (mm) = L1 | 604 | 604 | 654 | 654 | 654 |
| Weight (Kg) | 2,21 | 2,29 | 2,6 | 2,7 | 2,85 |
| Package dimensions (mm) | 660 x 80 x 80 | 660 x 80 x 80 | 710 x 80 x 80 | 710 x 80 x 80 | 710 x 80 x 80 |
| Motor packed weight (Kg) | 2,47 | 2,64 | 3 | 3,1 | 3,25 |
