came bpt lan network interface for system xip eti/xip 62740030
Brand: BPT
SKU: 62740030
£1,615.00 £1,308.15VAT INCLUDED |
|---|
came bpt lan network interface for system xip eti/xip 62740030

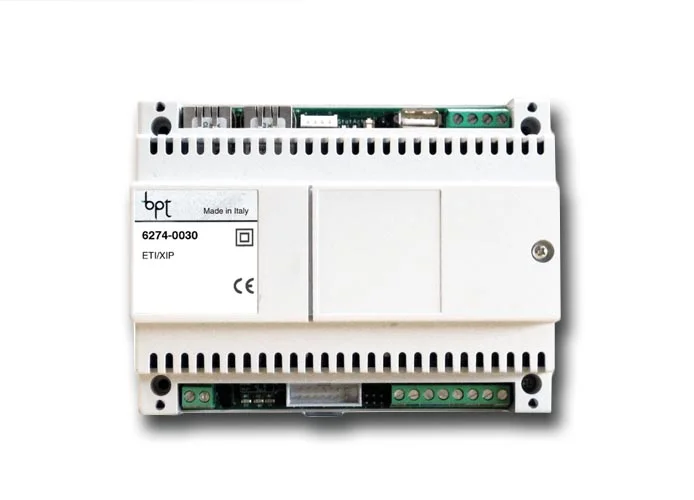

CAME BPT - LAN NETWORK INTERFACE FOR XIP SYSTEM.
SYSTEM XIP
- PLASTIC CASING FOR INSTALLATION IN CONTROL PANELS (EN50022) AND DIMENSIONS 8 LOW DIN MODULES
- IT ALLOWS THE IMPLEMENTATION OF VIDEO INTERCOM SYSTEMS VIA THE ETHERNET NETWORK AND ALLOWS THE MANAGEMENT OF ACCESS CONTROL FUNCTIONS
- EQUIPPED WITH: 1 QUICK-ACTIVATED CONNECTOR FOR POWER SUPPLY VA/08, 2 RJ45 INPUTS IN SWITCH CONFIGURATION FOR 10/100 Mb ETHERNET NETWORKS AND PINS FOR DIRECT CONNECTION TO AN EXTERNAL XIP LOCATION
- 3 PROGRAMMABLE INPUTS AVAILABLE
- 3 LEDS ARE PRESENT FOR SIGNALLING SYSTEM STATUS AND COMMUNICATIONS
- THE GATEWAY SUPPORTS THE XIP AND SIP PROTOCOLS
- IT NEEDS POWER SUPPLY 14÷18V DC / 390 mA MAX.
LAN NETWORK INTERFACE ETI/XIP
62740030
SYSTEM XIP
- PLASTIC CASING FOR INSTALLATION IN CONTROL PANELS (EN50022) AND DIMENSIONS 8 LOW DIN MODULES
- IT ALLOWS THE IMPLEMENTATION OF VIDEO INTERCOM SYSTEMS VIA THE ETHERNET NETWORK AND ALLOWS THE MANAGEMENT OF ACCESS CONTROL FUNCTIONS
- EQUIPPED WITH: 1 QUICK-ACTIVATED CONNECTOR FOR POWER SUPPLY VA/08, 2 RJ45 INPUTS IN SWITCH CONFIGURATION FOR 10/100 Mb ETHERNET NETWORKS AND PINS FOR DIRECT CONNECTION TO AN EXTERNAL XIP LOCATION
- 3 PROGRAMMABLE INPUTS AVAILABLE
- 3 LEDS ARE PRESENT FOR SIGNALLING SYSTEM STATUS AND COMMUNICATIONS
- THE GATEWAY SUPPORTS THE XIP AND SIP PROTOCOLS
- IT NEEDS POWER SUPPLY 14÷18V DC / 390 mA MAX.
LAN NETWORK INTERFACE ETI/XIP
62740030
