came barrier gard 12 24v 001g12000k g12000k
Brand: CAME
SKU: 001G12000K
£7,543.00 £5,648.95VAT INCLUDED |
|---|
came barrier gard 12 24v 001g12000k g12000k

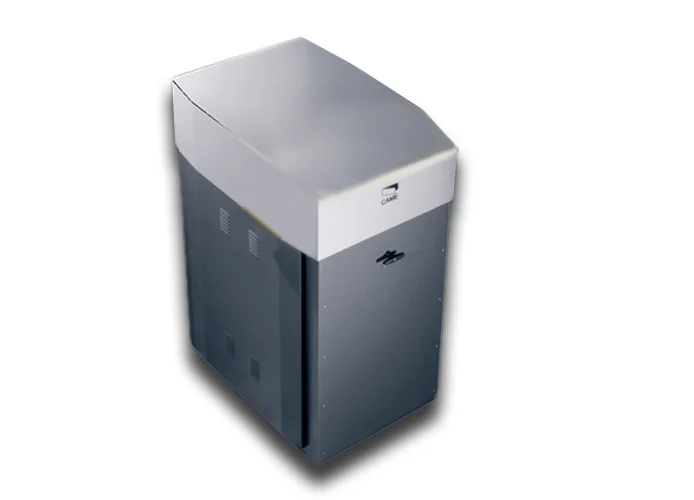

CAME - BARRIER WITH 24V DC GEARMOTOR AND BUILT-IN CONTROL UNIT, GALVANISED AND PAINTED STEEL CABINET
- TWO 24V DC GEARMOTORS MOUNTED ON THE SAME AXIS TO PROVIDE A GREATER DRIVE TORQUE.
- MODULAR COUNTERWEIGHT BALANCING ENSURES SAFE AND RELIABLE MOVEMENT OF THE ROD.
- ROBUST STRUCTURE WITH GALVANISED STEEL CABINET WITH TEXTURED FINISH.
MAX. PASSAGE WIDTH: 12 METRES
- TWO 24V DC GEARMOTORS MOUNTED ON THE SAME AXIS TO PROVIDE A GREATER DRIVE TORQUE.
- MODULAR COUNTERWEIGHT BALANCING ENSURES SAFE AND RELIABLE MOVEMENT OF THE ROD.
- ROBUST STRUCTURE WITH GALVANISED STEEL CABINET WITH TEXTURED FINISH.
MAX. PASSAGE WIDTH: 12 METRES
BARRIER GARD 12
G12000K
G12000K
TECHNICAL DETAILS:
PROTECTION LEVEL (IP) 54
POWER SUPPLY (V - 50/60 HZ) 230 AC
MOTOR POWER SUPPLY (V) 24 DC
MAX ABSORBED CURRENT (A) 15 MAX.
POWER (W) 300
OPENING TIME AT 90° (S) 10
DUTY CYCLE (%) 50
DRIVE TORQUE (NM) 600
OPERATING TEMPERATURE (°C) -20 ÷ +55
PROTECTION LEVEL (IP) 54
POWER SUPPLY (V - 50/60 HZ) 230 AC
MOTOR POWER SUPPLY (V) 24 DC
MAX ABSORBED CURRENT (A) 15 MAX.
POWER (W) 300
OPENING TIME AT 90° (S) 10
DUTY CYCLE (%) 50
DRIVE TORQUE (NM) 600
OPERATING TEMPERATURE (°C) -20 ÷ +55
