came automation kit krono kr310 230v 001u1433 u1433
Brand: CAME
SKU: 001U1433
£1,591.70 £1,146.02VAT INCLUDED |
|---|
came automation kit krono kr310 230v 001u1433 u1433
CAME - AUTOMATION KIT KRONO 001U1433, TESTED ACCORDING TO THE STANDARDS EN 12453-EN 12445
COMPLETE SYSTEM FOR SWING GATES WITH TWO LEAVES MEASURING MAX 3 MT PER LEAF, WITH 230V AC MOTOR, MAX LEAF WEIGHT 400KG
KR310S
KR310D
KIT KRONO 310
001U1433 U1433
230V AC

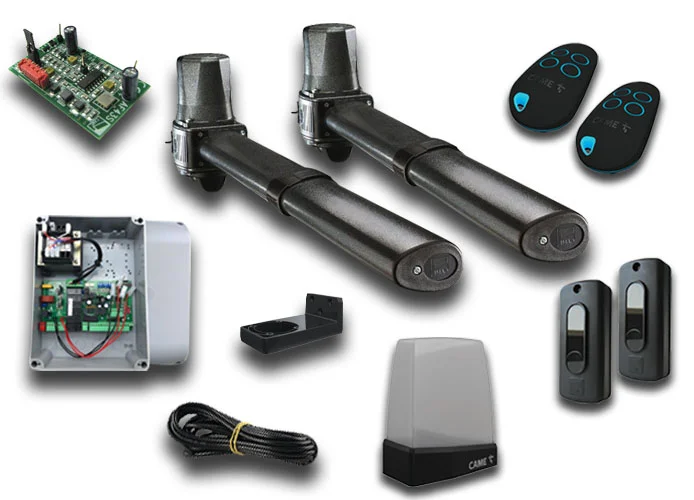

IT INCLUDES:
- 1 KR310D: Irreversible right gearmotor for swing gates of up to 3 Mt per leaf with
opening and closing limit-switch micro-switches.
- 1 KR310S: Irreversible left gearmotor for swing gates of up 3 Mt per leaf with opening
and closing micro limit-switches.
- 1 ZA3P: Multifunction control panel for two-leaved swing gates, with limit-switch
control and slow-down speed adjusting.
- 1 AF43S: Plug-in radio frequency control card 433,92 MHz
- 2 806TS-0270 TOP44RBN: 4-channel rolling code transmitter 433,92 MHz
- 1 TOP-RG58: Antenna cable 5 Mt
- 1 DIR10: Pair of 12 - 24 V AC - DC outdoor photocells - range 10 Mt
- 1 806LA-0020: Led flashing light with power supply from 24 v ac - dc up to 230 v ac, with double built-in antenna (433.92 mhz and 868.35 mhz), with white dome
- 1 806LA-0040: Wall-fastening base for krx flashing lights
- 1 Gate Plate
COMPLETE SYSTEM FOR SWING GATES WITH TWO LEAVES MEASURING MAX 3 MT PER LEAF, WITH 230V AC MOTOR, MAX LEAF WEIGHT 400KG
KR310S KR310DKIT KRONO 310
001U1433 U1433
230V AC
IT INCLUDES:
- 1 KR310D: Irreversible right gearmotor for swing gates of up to 3 Mt per leaf with
opening and closing limit-switch micro-switches.
- 1 KR310S: Irreversible left gearmotor for swing gates of up 3 Mt per leaf with opening
and closing micro limit-switches.
- 1 ZA3P: Multifunction control panel for two-leaved swing gates, with limit-switch
control and slow-down speed adjusting.
- 1 AF43S: Plug-in radio frequency control card 433,92 MHz
- 2 806TS-0270 TOP44RBN: 4-channel rolling code transmitter 433,92 MHz
- 1 TOP-RG58: Antenna cable 5 Mt
- 1 DIR10: Pair of 12 - 24 V AC - DC outdoor photocells - range 10 Mt
- 1 806LA-0020: Led flashing light with power supply from 24 v ac - dc up to 230 v ac, with double built-in antenna (433.92 mhz and 868.35 mhz), with white dome
- 1 806LA-0040: Wall-fastening base for krx flashing lights
- 1 Gate Plate
