came automation kit ferni 230v 001u1210fr u1210fr

CAME - AUTOMATION KIT FERNI 001U1210FR, TESTED ACCORDING TO THE STANDARDS EN 12453-EN 12445

COMPLETE SYSTEM FOR SWING GATES WITH TWO LEAVES MEASURING MAX 4 MT PER LEAF





  KIT FERNI
001U1210FR       U1210FR
230V AC

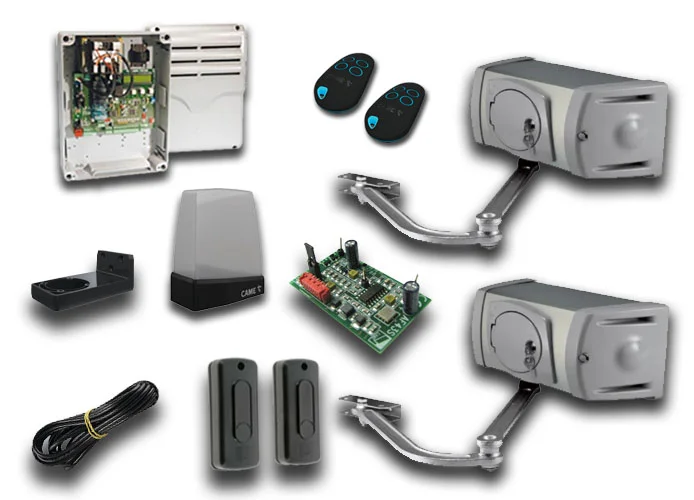

IT INCLUDES:
-  2  FE40230: Irreversible gearmotor with folding drive arm for swing gates measuring up to 4 Mt per leaf
-  1  ZM3E: Multifunction control panel for swing gates with two leaves, graphic alerts display, self-diagnosing safety devices and on-board radio decoding
-  1  AF43S: Plug-in radio-frequency control card 433,92 MHz
-  2  806TS-0270 TOP44RBN 4-channel rolling code transmitter 433,92 MHz
-  1  TOP-RG58: Antenna cable 5 Mt
-  1  DIR10: Pair of 12 - 24 V AC - DC outdoor photocells - range 10 Mt
-  1  806LA-0020: Led flashing light with power supply from 24 v ac - dc up to 230 v ac, with double built-in antenna (433.92 mhz and 868.35 mhz), with white dome
-  1  806LA-0040: Wall-fastening base for krx flashing lights
-  1  Gate plate
