came automation kit axo ax402306 230v 001u7339 u7339

CAME - AUTOMATION KIT AXO 001U7339, TESTED ACCORDING TO EN 12453-EN 12445.

COMPLETE SYSTEM FOR SWING GATES WITH TWO LEAVES MEASURING MAX 4 MT PER LEAF WITH 230V AC MOTOR.

- MECHANICAL, INTEGRATED AND ADJUSTABLE LIMIT SWITCHES
- DEVELOPED WITH TECHNOLOGY CONNECT FOR DIGITAL REMOTE MANAGEMENT VIA GATEWAY OR LOCALLY VIA CAME KEY
- OPENING TIME 90° - 28 SECONDS.

KIT  AXO
001U7339       U7339
230V AC

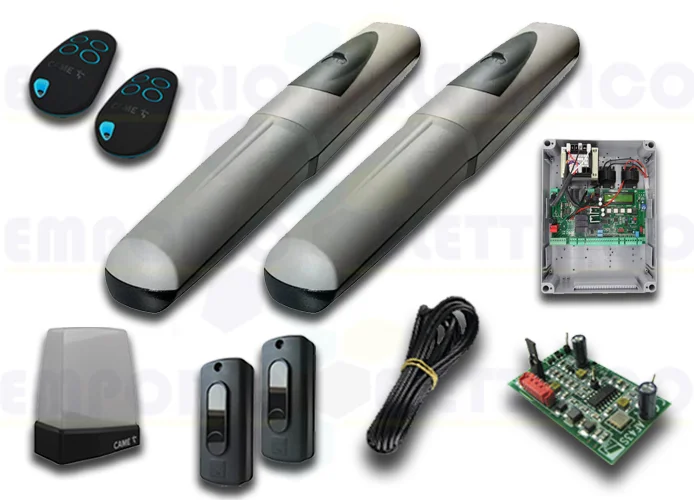

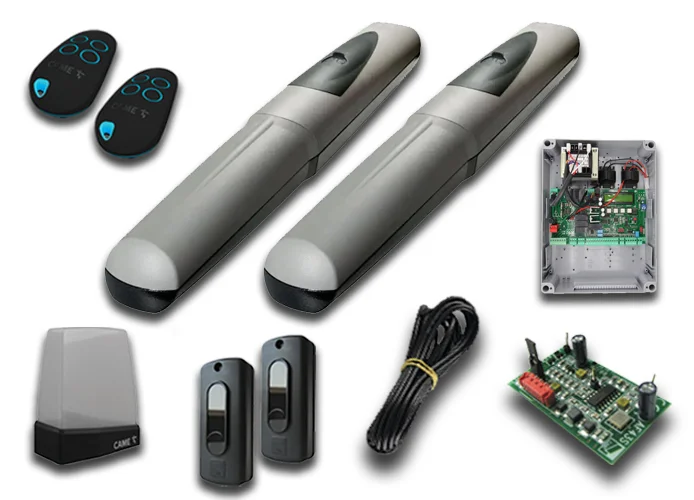

IT INCLUDES:
-  2  AX402306 Irreversible gearmotor with encoder for leaves up to 4 m, 230V AC, opening time 90° - 28 seconds
-  1  ZM3E Multifunction control panel for two-leaf swing gates, with graphic display, self-diagnosis of safety devices and built-in radio decoding.
-  1  AF43S Plug-in radio card 433,92 MHz
-  2  806TS-0270 TOP44RBN 4-channel rolling code transmitter 433,92 MHz
-  1  TOP-RG58 Antenna connection cable 5 Mt
-  1  DIR10 Pair of 12 - 24 V AC - DC outdoor photocells - range 10 Mt
-  1  806LA-0020 Led flashing light with power supply from 24 v ac - dc up to 230 v ac, with double built-in antenna (433.92 mhz and 868.35 mhz), with white dome
-  1  Gate plate.
