came automation kit axo ax302304 230v 001u7335 u7335 (ex u7350)

CAME AUTOMATION KIT AXO, TESTED ACCORDING TO STANDARDS EN 12453-EN 12445

COMPLETE SYSTEM FOR 2-LEAF SWING UP TO 3 MT FOR LEAF

230V AC MOTOR (EX U7350)

 001U7335    U7335 (EX U7350)
230V AC

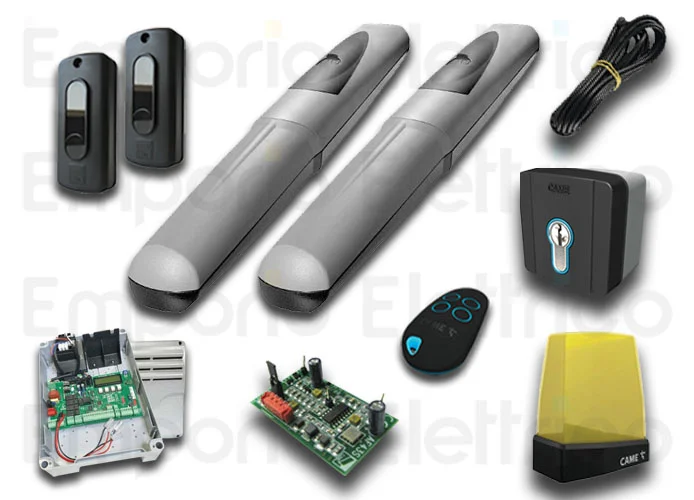

IT INCLUDES:
-  2  AX302304 Irreversible gearmotors with encoder for swing gates measuring up to 3 Mt for leaf.
-  1  ZM3E Multifunction control panel for swing gates with two leaves, graphic alerts display, self-diagnosing safety devices and on-board radio decoding
-  1  AF43S Two-channel multiuser transmitter with self-learning function (16,777,216 in TAM mode, 4,096 combinations in TOP mode) 433,92 MHz
-  1  806TS-0270 TOP44RBN 4-channel rolling code transmitter 433,92 MHz
-  1  TOP-RG58 Antenna cable 5 Mt
-  1  SET-J  Surface-mounted key-switch selector with micro-switch, aluminum alloy casing, protective hatch and lock cylinder
-  1  DIR10 Pair of 12 - 24 V AC - DC outdoor photocells – range 10 Mt
-  1  806LA-0030: Led flashing light with power supply from 24 Vac-dc up to 230 Vac with yellow dome, double built-in antenna (433.92 MHz and 868.35 MHz)
-  1  Gate plate
