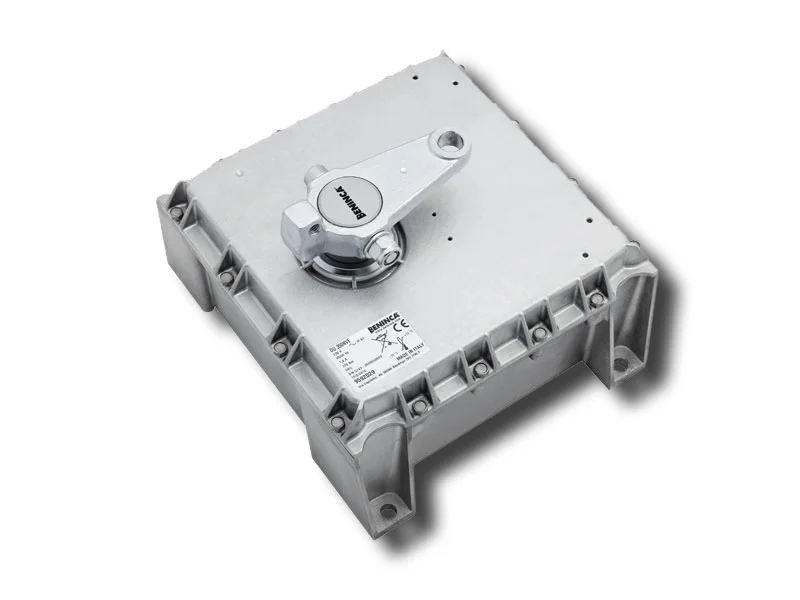

beninca underground gearmotor for swing gates 230v du.350nve 9592029
Brand: BENINCA
SKU: DU.350NVE
£876.00 £543.12VAT INCLUDED |
|---|
beninca underground gearmotor for swing gates 230v du.350nve 9592029
BENINCA - IRREVERSIBLE ELECTROMECHANICAL GEARMOTOR FOR SWING GATES WITH LEAVES UP TO 3 MT
- OIL-DYNAMIC ACTUATOR
- UNDERGROUND INSTALLATION
- BUILT-IN AND ADJUSTABLE MECHANICAL STOP
CAMME DISC FOR OPTIONAL LIMIT SWITCH USE NOT INCLUDED
- OIL-DYNAMIC ACTUATOR
- UNDERGROUND INSTALLATION
- BUILT-IN AND ADJUSTABLE MECHANICAL STOP
CAMME DISC FOR OPTIONAL LIMIT SWITCH USE NOT INCLUDED
UNDERGROUND GEARMOTOR FOR SWING GATES
DU.350NVE 9592029
DU.350NVE 9592029
TECHNICAL DETAILS:
POWER SUPPLY: 230 Vac (50-60Hz)
MOTOR POWER SUPPLY: 230 Vac
MAXIMUM ABSORBED CURRENT: 1.7 A
TORQUE: 370 Nm
OPENING TIME: 16"
DUTY CYCLE: INTENSIVE USE
PROTECTION INDEX: IP67
ENCODER: YES
LUBRICATION: OIL
OPERATING TEMPERATURE: -20°C /+50°C
POWER SUPPLY: 230 Vac (50-60Hz)
MOTOR POWER SUPPLY: 230 Vac
MAXIMUM ABSORBED CURRENT: 1.7 A
TORQUE: 370 Nm
OPENING TIME: 16"
DUTY CYCLE: INTENSIVE USE
PROTECTION INDEX: IP67
ENCODER: YES
LUBRICATION: OIL
OPERATING TEMPERATURE: -20°C /+50°C
