beninca right geared motor for swing gates 230v bill40m 9592124
Brand: BENINCA
SKU: BILL40M DX
£427.00 £264.74VAT INCLUDED |
|---|
beninca right geared motor for swing gates 230v bill40m 9592124

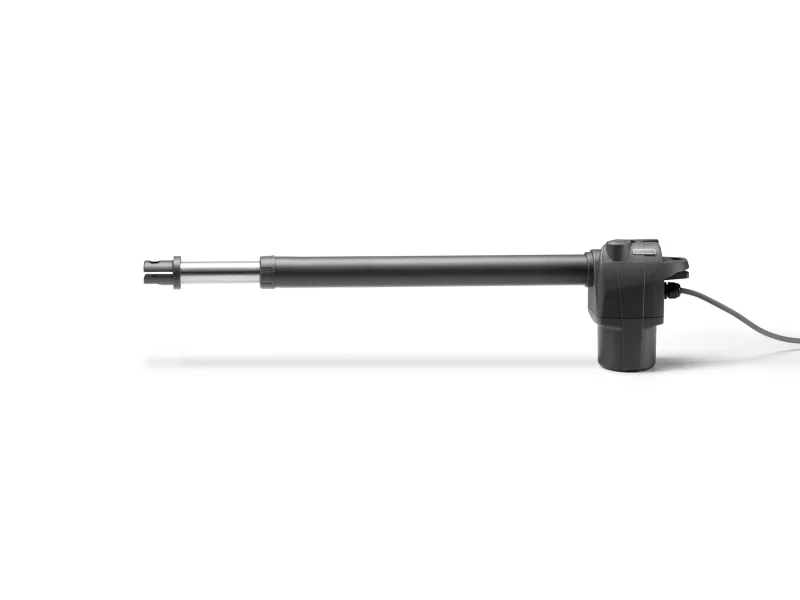

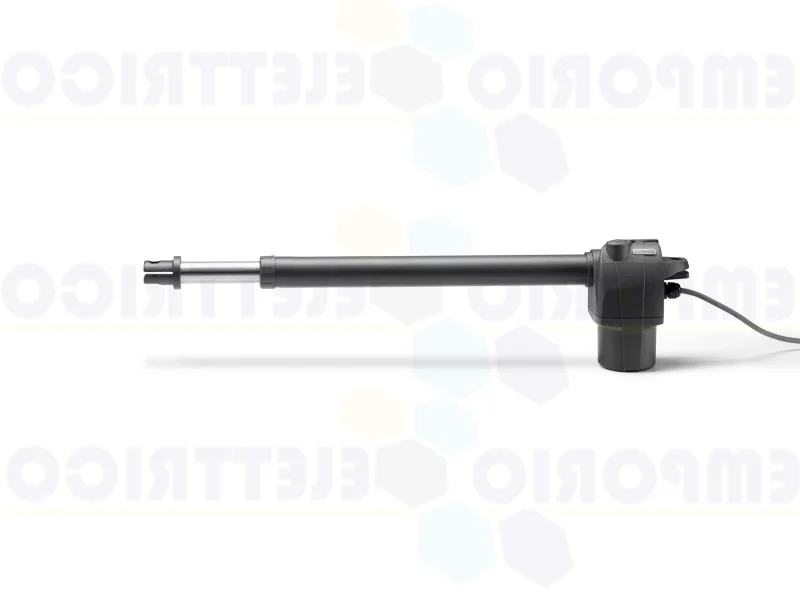

BENINCA - RIGHT IRREVERSIBLE ELECTROMECHANICAL GEARED MOTOR 230V FOR SWING GATES, UP TO 3,5 MT
GEARED MOTOR FOR SWING GATES
BILL40M DX 9592124
- IRREVERSIBLE ELECTROMECHANICAL GEARED MOTOR 230V WITH EASY-ACCESS TOP RELEASE
- IDEAL FOR AUTOMATION DEVICES FOR WROUGHT IRON GATES
- VERY SMALL AND SUITABLE FOR A QUICK AND EASY INSTALLATION
- WORM SCREW PROTECTED BY A SCRAPER RING AND STAINLESS STEEL STEM, SUITABLE FOR DUSTY OR SANDY ENVIRONMENTS, OR PLACES WITH AGGRESSIVE WEATHER CONDITIONS
GEARED MOTOR FOR SWING GATES
BILL40M DX 9592124
TECHNICAL DETAILS:
MAINS SUPPLY: 230 Vac (50-60Hz)
MOTOR POWER SUPPLY: 230 Vac
MAX CURRENT: 1,1 A
MAXIMUM THRUST: 2800 N
OPENING TIME: 18”
WORKING CYCLE: 30%
STANDARD STROKE: 400 mm
MAXIMUM STROKE: 420 mm
INDEX OF PROTECTION: IP54
OPERATING TEMPERATURE: -20°C /+50°C
MAINS SUPPLY: 230 Vac (50-60Hz)
MOTOR POWER SUPPLY: 230 Vac
MAX CURRENT: 1,1 A
MAXIMUM THRUST: 2800 N
OPENING TIME: 18”
WORKING CYCLE: 30%
STANDARD STROKE: 400 mm
MAXIMUM STROKE: 420 mm
INDEX OF PROTECTION: IP54
OPERATING TEMPERATURE: -20°C /+50°C
