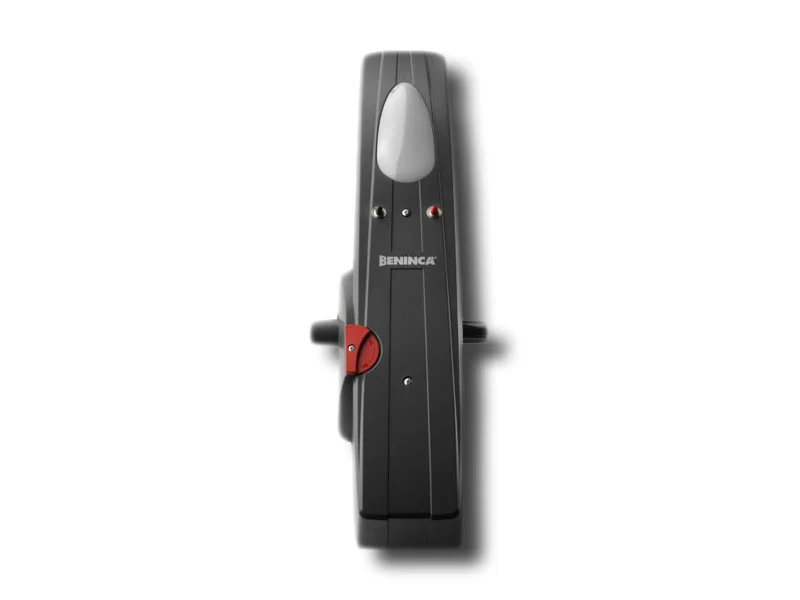

beninca irreversible gearmotor for overhead doors 230v zed.lrie 9592578
Brand: BENINCA
SKU: ZED.LRIE
£801.00 £496.62VAT INCLUDED |
|---|
beninca irreversible gearmotor for overhead doors 230v zed.lrie 9592578
BENINCA - IRREVERSIBLE ELECTROMECHANICAL GEARMOTOR, FOR COUNTERWEIGHTED OVERHED DOORS, WITH LEAVES UP TO 12,5 M2 FOR RESIDENTIAL/CONDOMINIUM USE
- INTEGRATED COURTESY LIGHT
- CONTROL UNIT AND RADIO RECEIVER INTEGRATED IN THE AUTOMATION
- THE ENCODER DEVICE GUARANTEES ANTI-CRUSHING SAFETY AND PRECISION IN THE DOOR MOVEMENT PHASES
- QUIETER OPERATION THANKS TO THE NEW CONTROL UNIT WITH AUTOTRANSFORMER DESIGNED TO REDUCE DOOR VIBRATIONS TO THE MINIMUM
MAINS SUPPLY: 230 Vac (50-60Hz)
MOTOR POWER SUPPLY: 230 Vac
MAXIMUM ABSORBED CURRENT:1,4 A
DRIVE TORQUE: 330 Nm
OPENING TIME: 22''
WORKING CYCLE: 30%
INDEX OF PROTECTION: IP40
OPERATING TEMPERATURE: -20°C / +50°C
DOOR SURFACE: 12,5 M2/MAX
- INTEGRATED COURTESY LIGHT
- CONTROL UNIT AND RADIO RECEIVER INTEGRATED IN THE AUTOMATION
- THE ENCODER DEVICE GUARANTEES ANTI-CRUSHING SAFETY AND PRECISION IN THE DOOR MOVEMENT PHASES
- QUIETER OPERATION THANKS TO THE NEW CONTROL UNIT WITH AUTOTRANSFORMER DESIGNED TO REDUCE DOOR VIBRATIONS TO THE MINIMUM
GEARMOTOR FOR COUNTERWEIGHTED OVERHEAD DOORS
ZED.LRIE 9592578
TECHNICAL DETAILS:ZED.LRIE 9592578
MAINS SUPPLY: 230 Vac (50-60Hz)
MOTOR POWER SUPPLY: 230 Vac
MAXIMUM ABSORBED CURRENT:1,4 A
DRIVE TORQUE: 330 Nm
OPENING TIME: 22''
WORKING CYCLE: 30%
INDEX OF PROTECTION: IP40
OPERATING TEMPERATURE: -20°C / +50°C
DOOR SURFACE: 12,5 M2/MAX
