beninca irreversible gearmotor for industrial doors 230v vn.s40v 9590239
Brand: BENINCA
SKU: VN.S40V
£939.00 £582.18VAT INCLUDED |
|---|

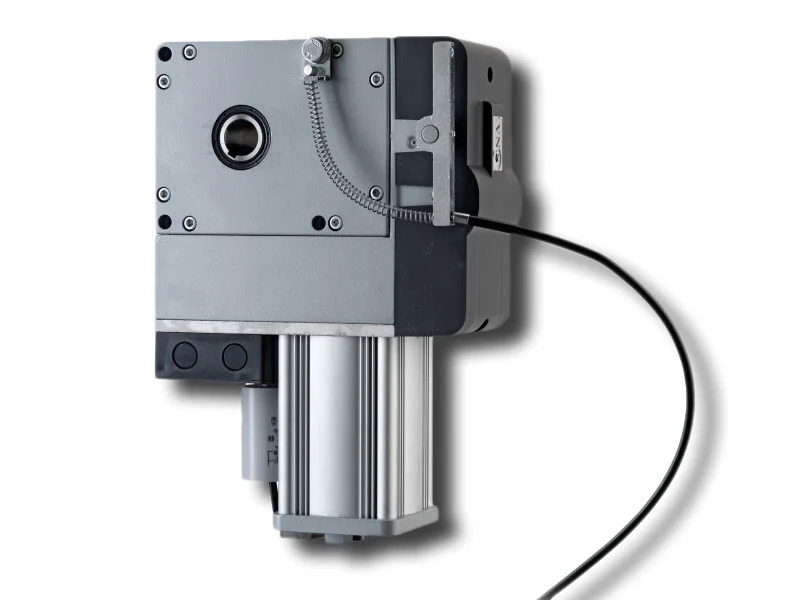

beninca irreversible gearmotor for industrial doors 230v vn.s40v 9590239
BENINCA - IRREVERSIBLE ELECTROMECHANICAL GEARMOTOR, FOR INDUSTRIAL SLIDING DOORS AND FOLDING DOORS WITH MORE THAN 2 LEAVES, INDUSTRIAL USE
- IRREVERSIBLE ELECTROMECHANICAL GEARMOTOR
- MAXIMUM SAFETY GUARANTEED EVEN WHEN OPERATING THE RAPID RELEASE, THANKS TO A MICRO-SWITCH THAT INTERRUPTS THE MOTOR POWER SUPPLY
- THE OIL-BATH REDUCTION GEARS WITH TEMPERED STEEL SCREW AND BRONZE GEARING GUARANTEE HIGH PERFORMANCE, MAXIMUM RELIABILITY AND SILENT OPERATIONS
- 4 MICROMETRICALLY ADJUSTABLE LIMIT SWITCHES
GEARMOTOR FOR INDUSTRIAL DOORS 230V
VN.S40V 9590239
- IRREVERSIBLE ELECTROMECHANICAL GEARMOTOR
- MAXIMUM SAFETY GUARANTEED EVEN WHEN OPERATING THE RAPID RELEASE, THANKS TO A MICRO-SWITCH THAT INTERRUPTS THE MOTOR POWER SUPPLY
- THE OIL-BATH REDUCTION GEARS WITH TEMPERED STEEL SCREW AND BRONZE GEARING GUARANTEE HIGH PERFORMANCE, MAXIMUM RELIABILITY AND SILENT OPERATIONS
- 4 MICROMETRICALLY ADJUSTABLE LIMIT SWITCHES
GEARMOTOR FOR INDUSTRIAL DOORS 230V
VN.S40V 9590239
TECHNICAL DETAILS:
MAINS SUPPLY: 230 Vac (50-60Hz)
MOTOR POWER SUPPLY: 230 Vac
MAXIMUM ABSORBED CURRENT: 1,5 A
MAX DRIVE TORQUE: 135 Nm
MAXIMUM OUTPUT ROTATIONS: 38
OUTPUT SPEED: 48 r.p.m.
SHAFT BORE: 1" (25.4 mm)
LIMIT SWITCH REDUCTION RATIO: 1/40
WORKING CYCLE: 40%.
INDEX OF PROTECTION: IP40
OPERATING TEMPERATURE: -20°C /+50°C
LUBRICATION: OIL
MAX DOOR WEIGHT: 800 kg
MOTOR POWER SUPPLY: 230 Vac
MAXIMUM ABSORBED CURRENT: 1,5 A
MAX DRIVE TORQUE: 135 Nm
MAXIMUM OUTPUT ROTATIONS: 38
OUTPUT SPEED: 48 r.p.m.
SHAFT BORE: 1" (25.4 mm)
LIMIT SWITCH REDUCTION RATIO: 1/40
WORKING CYCLE: 40%.
INDEX OF PROTECTION: IP40
OPERATING TEMPERATURE: -20°C /+50°C
LUBRICATION: OIL
MAX DOOR WEIGHT: 800 kg
