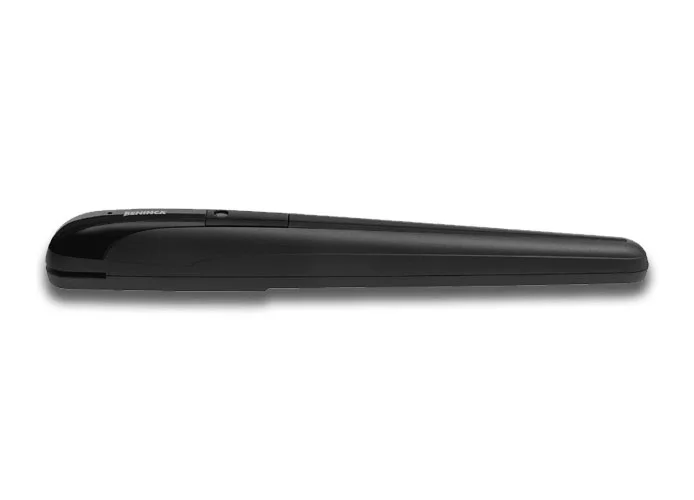

beninca irreversible gearmotor 230v swing gates bob50me.dk
Brand: BENINCA
SKU: BOB50ME.DK
£708.00 £438.96VAT INCLUDED |
|---|
beninca irreversible gearmotor 230v swing gates bob50me.dk
BENINCA - IRREVERSIBLE ELECTROMECHANICAL GEARMOTOR 230VDC FOR LEAF UP TO 5M.
- EQUIPPED WITH ENCODER
- ROLLED SPHERICAL SECTION SCREW Ø 20 MM
- THE ENCODER DEVICE GUARANTEES MAXIMUM SAFETY AND PRECISION WHEN MOVING THE GATE
- RELIABLE AND QUICK TO INSTALL, THANKS TO 2 ADJUSTABLE MECHANICAL STOPS FOR OPENING AND CLOSING
- EASY-ACCESS TOP RELEASE.
BENINCA - BOB50ME.DK
TECHNICAL DETAILS:
MOTOR POWER SUPPLY: 230 VDC
- EQUIPPED WITH ENCODER
- ROLLED SPHERICAL SECTION SCREW Ø 20 MM
- THE ENCODER DEVICE GUARANTEES MAXIMUM SAFETY AND PRECISION WHEN MOVING THE GATE
- RELIABLE AND QUICK TO INSTALL, THANKS TO 2 ADJUSTABLE MECHANICAL STOPS FOR OPENING AND CLOSING
- EASY-ACCESS TOP RELEASE.
BENINCA - BOB50ME.DK
TECHNICAL DETAILS:
MOTOR POWER SUPPLY: 230 VDC
MAXIMUM CURRENT ABSORBED: 1,4 A
MAXIMUM PUSH :3500 N
OPENING TIME: 26"
STANDARD STROKE :455 MM
MAXIMUM STROKE: 520 MM
WORKING CYCLE: 30%
INDEX OF PROTECTION: IP44
LUBRICATION: GREASE
OPERATING TEMPERATURE: -20°C /+50°C
LUBRICATION: GREASE
OPERATING TEMPERATURE: -20°C /+50°C
MAX LEAF LENGHT: 5 M.
