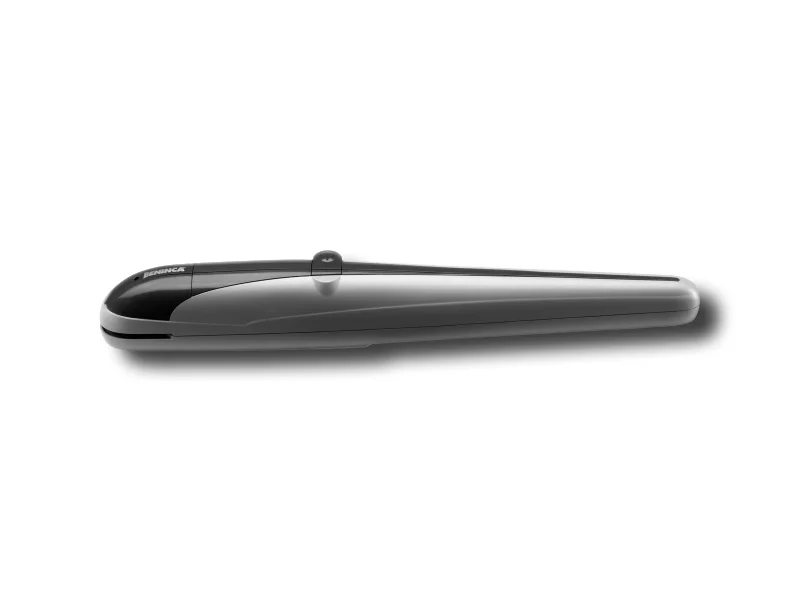

beninca irreversible geared motor 230vac for swing gates bob30m 9591535
Brand: BENINCA
SKU: BOB30M
£505.00 £313.10VAT INCLUDED |
|---|
beninca irreversible geared motor 230vac for swing gates bob30m 9591535
BENINCA - IRREVERSIBLE ELECTROMECHANICAL GEARMOTOR, LINEAR WORM GEAR MOVEMENT, FOR SWING GATES WITH LEAVES UP TO 3 MT
- RELIABLE, QUIET, AND QUICK TO INSTALL GEARED MOTOR, THANKS TO ITS 2 ADJUSTABLE MECHANICAL STOPS FOR OPENING AND CLOSING
- ROLLED BALL SCREWS Ø 20 MM. EASY ACCESS RELEASE FROM ABOVE
IRREVERSIBLE ELECTROMECHANICAL GEARMOTOR
BOB30M 9591535
- RELIABLE, QUIET, AND QUICK TO INSTALL GEARED MOTOR, THANKS TO ITS 2 ADJUSTABLE MECHANICAL STOPS FOR OPENING AND CLOSING
- ROLLED BALL SCREWS Ø 20 MM. EASY ACCESS RELEASE FROM ABOVE
IRREVERSIBLE ELECTROMECHANICAL GEARMOTOR
BOB30M 9591535
TECHNICAL DETAILS:
MAINS SUPPLY: 230 Vac (50-60 Hz)
MOTOR POWER SUPPLY: 230 Vac
MAX ABSORBED CURRENT: 1,8 A
MAXIMUM THRUST: 2300 N
OPENING TIME: 18''
WORKING CYCLE: 30%
STANDARD STROKE: 270 mm
MAXIMUM STROKE: 325 mm
INDEX OF PROTECTION: IP44
OPERATING TEMPERATURE: -20°C /+50°C
MAX LEAF DIMENSION: 3 mt
MAINS SUPPLY: 230 Vac (50-60 Hz)
MOTOR POWER SUPPLY: 230 Vac
MAX ABSORBED CURRENT: 1,8 A
MAXIMUM THRUST: 2300 N
OPENING TIME: 18''
WORKING CYCLE: 30%
STANDARD STROKE: 270 mm
MAXIMUM STROKE: 325 mm
INDEX OF PROTECTION: IP44
OPERATING TEMPERATURE: -20°C /+50°C
MAX LEAF DIMENSION: 3 mt
