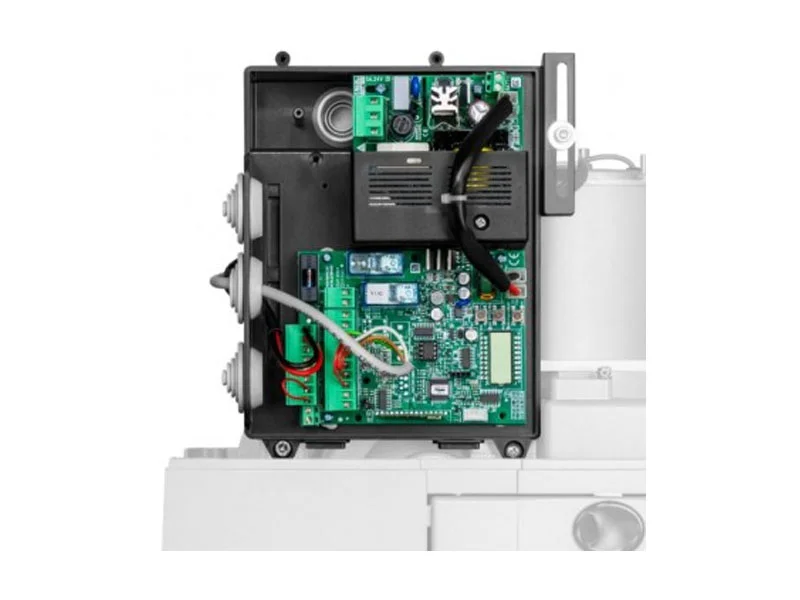

beninca central control spare part bull1524 24v cp.b1524

APPLICATION
1 actuator for BULL1524 sliding gate

CENTRAL POWER SUPPLY
100÷250 Vac – 50/60 Hz

MOTOR POWER SUPPLY
24 Vdc

MAIN FUNCTIONS
Integrated LCD display | Integrated 433.92 MHz radio receiver with 2048 codes and ARC radio encoding | Removable terminal blocks | Automatic, semi-automatic and dead man's switch operating logic | Motor limit switch inputs | Step-by-step, pedestrian, stop inputs | Photocell input (PHOT O) programmable to be active during both opening and closing or active only during closing | Photocell input (PHOT C) active during both opening and closing | Input for N.C. or 8K2 sensitive edge | Step-by-step input configurable as open | Pedestrian input configurable as close | Two outputs configurable as gate open indicator light, second radio channel of the built-in receiver, service light, photocell test | Prepared for opposing door operation via SIS synchronisation card (optional) | Autoset operating parameters | Electronic torque adjustment | Anti-crushing safety device with amperometric detection | Electronic torque adjustment with automatic calculation for each point of the stroke (STC SYSTEM) | Adjustable slowdowns | Option to configure parameters and manage remote controls with the Advantouch system | Virtual encoder | Number of manoeuvres | Programming access password | Maintenance warning | Integrated battery charger, compatible with DA.BT2/DA.BT6 batteries.
