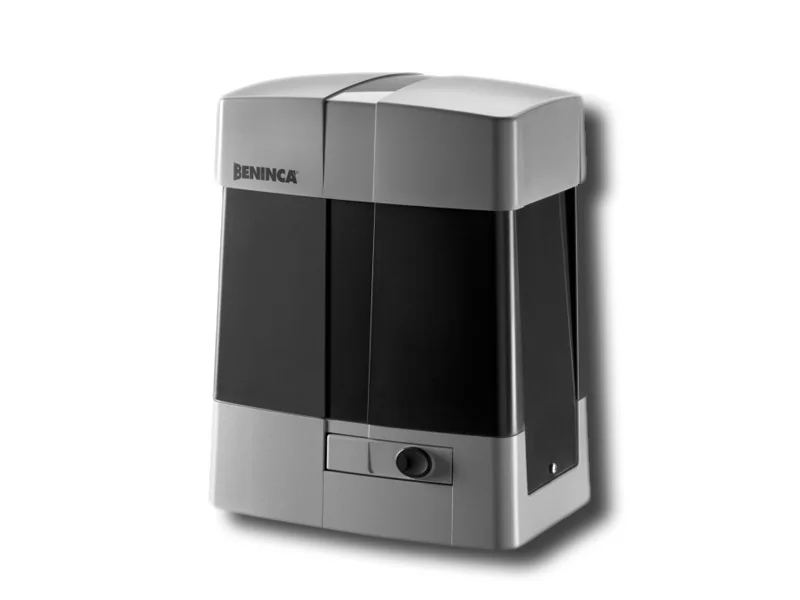

beninca 230vac geared motor for sliding gates bull20m 9592325
Brand: BENINCA
SKU: BULL20M
£1,288.00 £798.56VAT INCLUDED |
|---|
beninca 230vac geared motor for sliding gates bull20m 9592325
BENINCA - IRREVERSIBLE SINGLE PHASE 230 VAC ELECTROMECHANICAL GEARED MOTOR FOR INDUSTRIAL SLIDING GATES, UP TO 2000KG OF WEIGHT
- INTEGRATED CONTROL UNIT AND ENCODER
- THE ENCODER DEVICE ENSURES CRUSH PREVENTION AND PRECISION IN THE GATE MOVING PHASES
- CONTROL UNIT EQUIPPED WITH ELECTRONIC BRAKES
GEARED MOTOR FOR SLIDING GATES
BULL20M 9592325
- INTEGRATED CONTROL UNIT AND ENCODER
- THE ENCODER DEVICE ENSURES CRUSH PREVENTION AND PRECISION IN THE GATE MOVING PHASES
- CONTROL UNIT EQUIPPED WITH ELECTRONIC BRAKES
GEARED MOTOR FOR SLIDING GATES
BULL20M 9592325
TECHNICAL DETAILS:
Power supply: 230 Vac (50-60Hz)
Motor supply: 230 Vac
Max absorbed current: 2,9 A
Max thrust: 1667 N
Max opening speed: 10,5 m/min
Duty cycle: 40%
Protection level: IP44
Integrated control unit: YES
Magnetic limit switches: NO
Operating temperature: -20°C /+50°C
